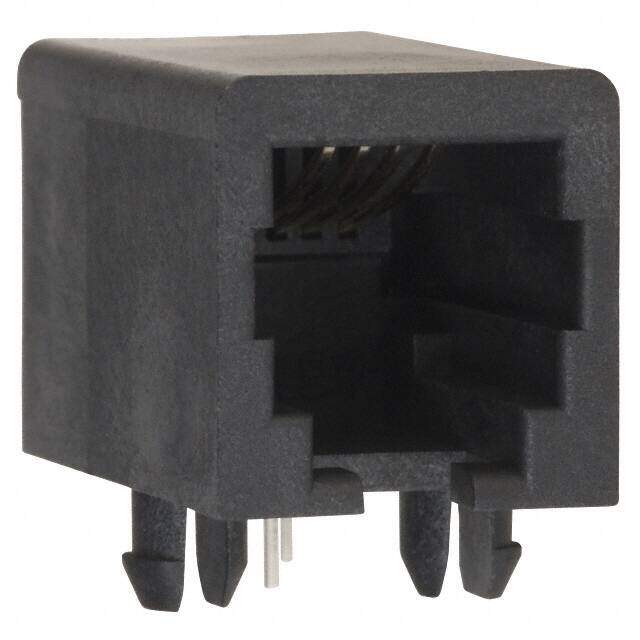

0432024101 image
Favorite
0432024101 image
Favorite

0432024101

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Modular Connectors - Jacks
Description Conn Modular Jack F 4 POS 2.54mm Solder RA Thru-Hole 4 Terminal 1 Port Tray Cat 3/Cat 4
PDF
/
Buying Options
Total Price: USD $1.72
Unit Price: USD $1.7248
≥1 USD $1.7248
≥10 USD $1.46608
≥100 USD $1.210994
≥500 USD $0.956032
≥1000 USD $0.892302
Inventory: 1007
Minimum: 1
-
+

Technical Details

Compliance

Ratings Cat4
RoHS Status ROHS3 Compliant

Dimensions

Contact Finish Thickness 50.0μin 1.27μm

Technical

Tab Direction Down
LED Color Does Not Contain LED
Number of Positions/Contacts 4p4c (RJ9, RJ10, RJ22)
Number of Ports 1
Empty Shell NO
UL Flammability Code 94V-0
Contact Gender FEMALE
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Finish Gold
Shielding Unshielded
Orientation 90° Angle (Right)
Total Number of Contacts 4
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
HTS Code 8536.69.40.30
Additional Feature LOW PROFILE
Connector Type Jack
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock
Series 43202
Packaging Tray
Operating Temperature -40°C~85°C

Physical

Housing Material Polyamide (PA), Nylon, Glass Filled
Shell Material POLYETHYLENE
Mounting Type Through Hole
Contact Material Phosphor Bronze

Supply Chain

Factory Lead Time 11 Weeks
