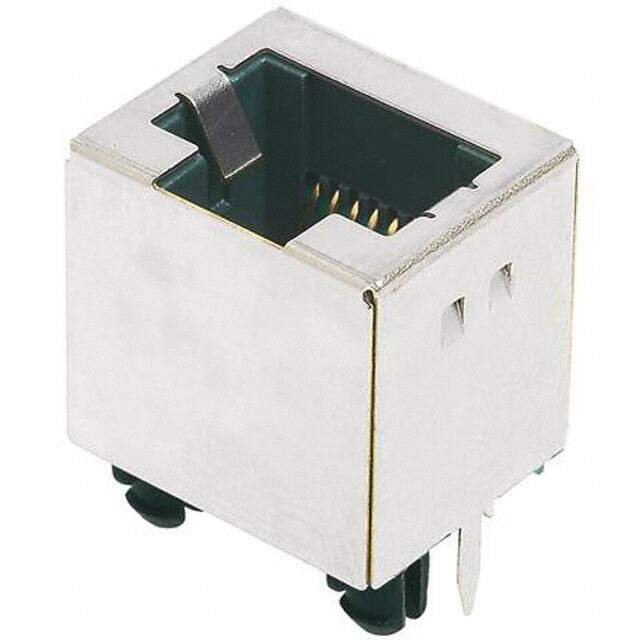

09455511103 image
Favorite
09455511103 image
Favorite

09455511103

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Modular Connectors - Jacks
Description CONN MOD JACK 8P8C VERT SHIELDED
PDF
/
Buying Options
Total Price: USD $2.75
Unit Price: USD $2.7544
≥1 USD $2.7544
≥10 USD $2.50184
≥100 USD $2.369664
≥500 USD $2.204224
≥1000 USD $1.928696
≥3000 USD $1.87359
Inventory: 556
Minimum: 1
-
+

Technical Details

Compliance

Ratings Cat5
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant

Dimensions

Width 13.6mm
Length 16.15mm

Technical

Tab Direction User Selectable
LED Color Does Not Contain LED
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Direction User Selectable
Durability 750 Cycles
Number of Ports 1
Contact Style TELCOM, MODULAR
Empty Shell NO
UL Flammability Code 94V-0
PCB Contact Pattern STAGGERED
Reliability COMMERCIAL
Voltage - Rated AC 125V
Contact Finish Gold
Reference Standard UL
Current Rating 1.5A
Depth 16.3mm
Ingress Protection IP20
Shielding Shielded
Orientation Vertical
Total Number of Contacts 8
Pitch 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Telecom and Datacom Connectors
Gender Female
Color Black
Number of Positions 8
Connector Type Jack
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Lock
Series RJ Industrial?
Packaging Tray
Operating Temperature -40°C~70°C

Physical

Weight 4.519991g
Housing Material Polybutylene Terephthalate (PBT)
Shell Material PLASTIC
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze

Supply Chain

Factory Lead Time 4 Weeks
