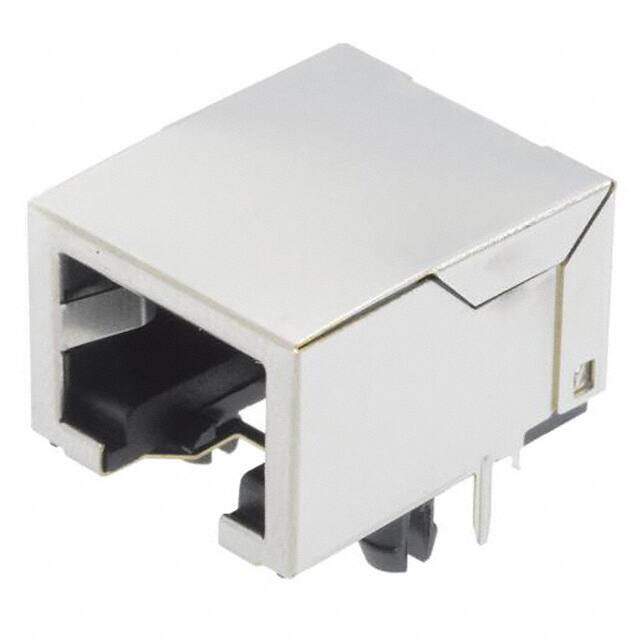

09455511102
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Modular Connectors - Jacks
Description
Modular Connectors / Ethernet Connectors RJ 45 MOD JACK THT
PDF
/
Buying Options
Total Price: USD $2.68
Unit Price: USD $2.677331
≥1 USD $2.677331
≥10 USD $2.525783
≥100 USD $2.382814
≥500 USD $2.247938
≥1000 USD $2.120696
Inventory: 3665
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Shell Material COPPER ALLOY
Housing Material Polybutylene Terephthalate (PBT)
Weight 4.036008g
Technical
Operating Temperature -20°C~70°C
Packaging Tray
Series RJ Industrial?
JESD-609 Code e3
Feature Board Lock
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Jack
Number of Positions 8
Color Grey
Gender Female
Voltage - Rated 125V
Subcategory Telecom and Datacom Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 2.54mm
Total Number of Contacts 10
Orientation 90° Angle (Right)
Shielding Shielded
Ingress Protection IP20
Depth 18.65mm
Current Rating 1.5A
Shell Finish NICKEL
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
PCB Contact Pattern STAGGERED
Body Breadth 2.953 inch
UL Flammability Code 94V-0
Housing Color Black
Empty Shell NO
Contact Style TELCOM, MODULAR
Number of Ports 1
Durability 750 Cycles
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
LED Color Does Not Contain LED
Tab Direction Down
Dimensions
Length 15.74mm
Width 15.74mm
Contact Finish Thickness 15.0μin 0.38μm
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Ratings Cat5
