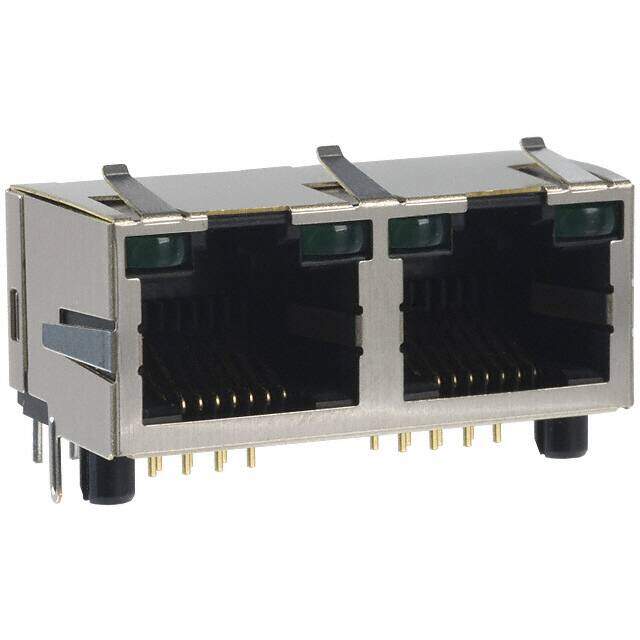

A20-216-663-310
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Modular Connectors - Jacks
Description
CONN MOD JACK 8P8C R/A SHIELDED
PDF
/
Inventory: 2932
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Number of Pins 8
Shell Material COPPER ALLOY
Housing Material Polybutylene Terephthalate (PBT)
Technical
Packaging Bulk
Published 2004
Series A20
Feature Board Lock
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Jack
Color Green
Number of Rows 1
Gender Male
Additional Feature ROHS COMPLAINT
Subcategory Telecom and Datacom Connectors
Orientation 90° Angle (Right)
Shielding Shielded
Shell Finish TIN
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Number of Contacts 16
Housing Color Black
Contact Style TELCOM, MODULAR
Insulation Resistance 500000000Ohm
Body/Shell Style RECEPTACLE
Number of Ports 2
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
LED Color Green - Green
Tab Direction Up
Dimensions
Contact Finish Thickness 30.0μin 0.76μm
Plating Thickness 30μin
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Ratings Cat5
