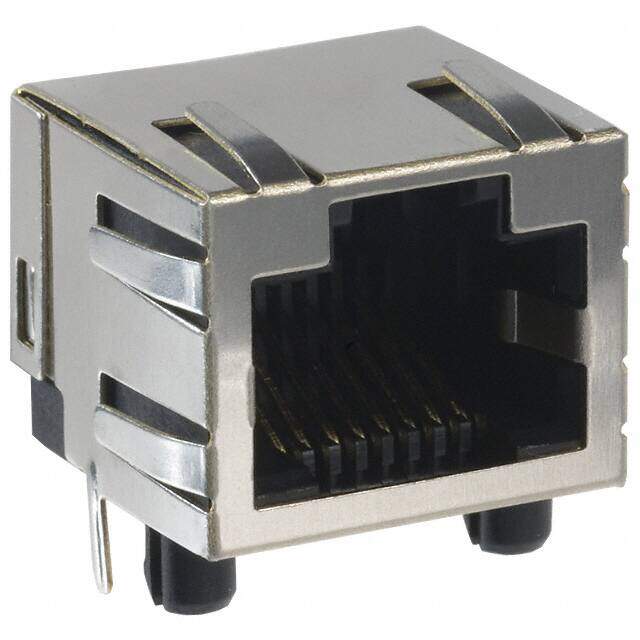

A20-108-660-010
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Modular Connectors - Jacks
Description
Conn RJ-45 F 8 POS Solder RA Thru-Hole 8 Terminal 10 Port Cat 5
PDF
/
Buying Options
Total Price: USD $3.51
Unit Price: USD $3.5112
≥1 USD $3.5112
≥10 USD $3.18736
≥100 USD $3.019104
≥500 USD $2.949056
≥1000 USD $2.808608
Inventory: 261
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Shell Material METAL
Housing Material Polybutylene Terephthalate (PBT)
Technical
Packaging Bulk
Published 2004
Series A20
Feature Board Lock
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Jack
Color Black
Gender Female
Additional Feature ROHS COMPLAINT
Subcategory Telecom and Datacom Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation 90° Angle (Right)
Shielding Shielded
Current Rating 1.5A
Shell Finish TIN
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Number of Contacts 8
UL Flammability Code 94V-0
Empty Shell NO
Contact Style TELCOM, MODULAR
Contact Resistance 20mOhm
Insulation Resistance 500MOhm
Max Current Rating 1.5A
Number of Ports 1
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
LED Color Does Not Contain LED
Tab Direction Up
Dimensions
Contact Finish Thickness 30.0μin 0.76μm
Plating Thickness 30μin
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
Ratings Cat5
