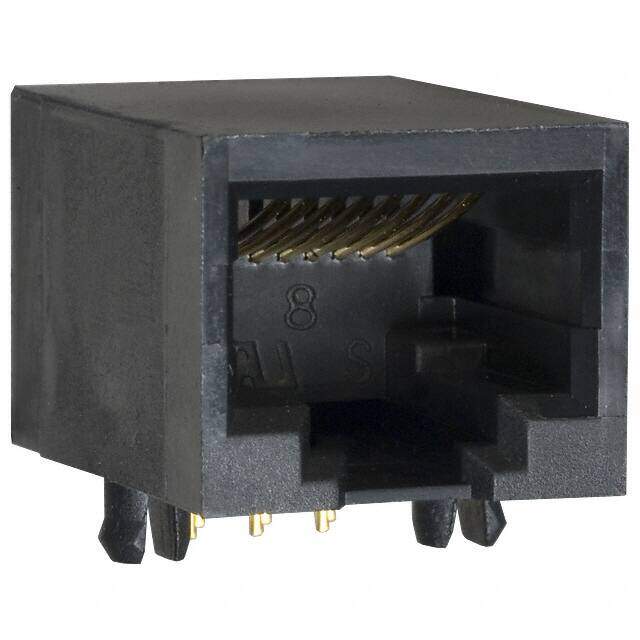

A00-108-660-450 image
Favorite
A00-108-660-450 image
Favorite

A00-108-660-450

EDAC Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Modular Connectors - Jacks
Description CONN MOD JACK 8P8C R/A UNSHLD
PDF
/
Buying Options
Total Price: USD $3.95
Unit Price: USD $3.949103
≥1 USD $3.949103
≥10 USD $3.725568
≥100 USD $3.514686
≥500 USD $3.315749
≥1000 USD $3.128057
Inventory: 7646
Minimum: 1
-
+

Technical Details

Compliance

Ratings Cat5
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC

Dimensions

Plating Thickness 30μin
Contact Finish Thickness 30.0μin 0.76μm

Technical

Tab Direction Down
LED Color Does Not Contain LED
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Number of Ports 1
Max Current Rating 1.5A
Body/Shell Style RECEPTACLE
Insulation Resistance 500MOhm
Contact Resistance 20mOhm
Contact Style TELCOM, MODULAR
Body Breadth 0.496 inch
PCB Contact Pattern STAGGERED
Number of Contacts 8
Body Length or Diameter 0.6 inch
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Current Rating 1.5A
Shielding Unshielded
Orientation 90° Angle (Right)
Pitch 2.54mm
Subcategory Telecom and Datacom Connectors
Voltage - Rated 1.25V
Gender Female
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 80°C
Connector Type Jack
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock
Series A00
Published 2006
Packaging Bulk

Physical

Housing Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze

Supply Chain

Factory Lead Time 14 Weeks
