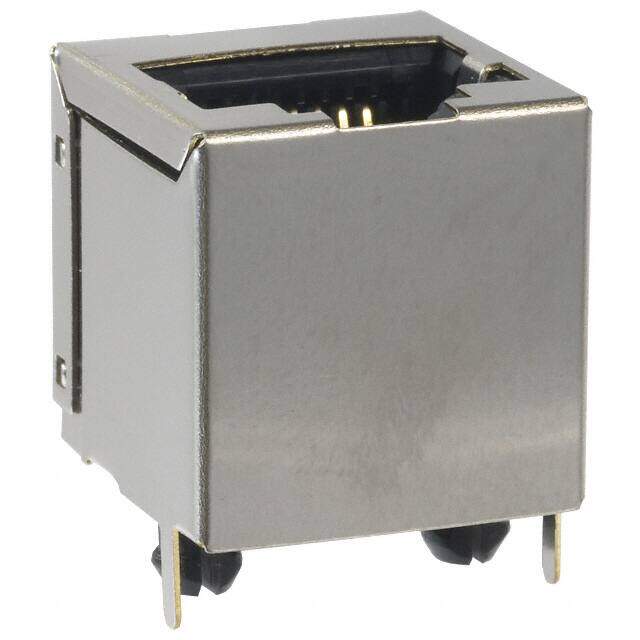

A00-108-622-450
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Modular Connectors - Jacks
Description
CONN MOD JACK 8P8C VERT SHIELDED
PDF
/
Buying Options
Total Price: USD $3.34
Unit Price: USD $3.3352
≥1 USD $3.3352
≥10 USD $3.02632
≥100 USD $2.866336
≥500 USD $2.799808
≥1000 USD $2.6664
≥3000 USD $2.333091
Inventory: 1144
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Shell Material METAL
Housing Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Technical
Packaging Bulk
Published 2007
Series A00
Feature Board Lock
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Jack
Max Operating Temperature 80°C
Min Operating Temperature -40°C
Color Black
Gender Female
Voltage - Rated 1.25V
Additional Feature LOW PROFILE
Subcategory Telecom and Datacom Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 2.54mm
Orientation Vertical
Shielding Shielded
Current Rating 1.5A
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Body Length or Diameter 0.6 inch
Number of Contacts 8
PCB Contact Pattern STAGGERED
Mating Information MULTIPLE MATING PARTS AVAILABLE
Body Breadth 0.496 inch
UL Flammability Code 94V-0
Empty Shell NO
Contact Style TELCOM, MODULAR
Contact Resistance 20mOhm
Insulation Resistance 500MOhm
Max Current Rating 1.5A
Number of Ports 1
Direction User Selectable
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
LED Color Does Not Contain LED
Tab Direction User Selectable
Dimensions
Contact Finish Thickness 30.0μin 0.76μm
Plating Thickness 30μin
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
Ratings Cat5
