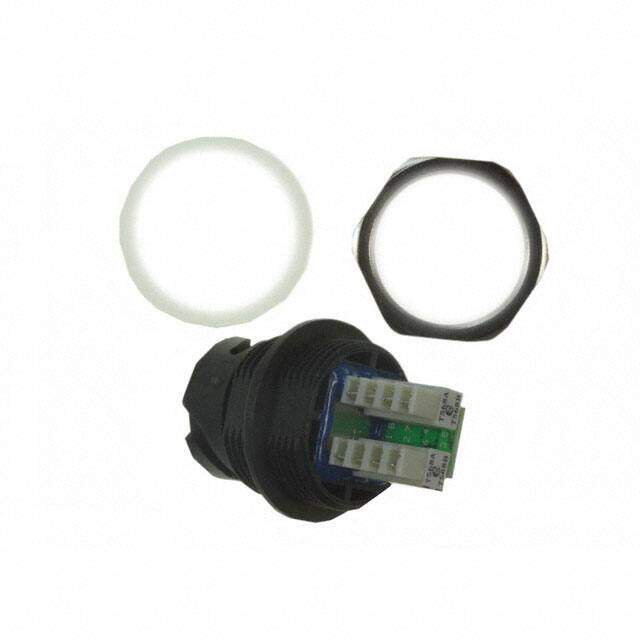

17-10033
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Modular Connectors - Jacks
Description
CONN MOD JACK 8P8C SHIELDED
PDF
/
Buying Options
Total Price: USD $19.33
Unit Price: USD $19.3336
≥1 USD $19.3336
≥10 USD $16.93296
≥100 USD $16.201152
≥500 USD $15.678432
≥1000 USD $15.1558
≥3000 USD $14.319642
Inventory: 159
Minimum: 1
-
+
Technical Details
Compliance
Ratings Cat5e
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Dimensions
Contact Finish Thickness 50.0μin 1.27μm
Technical
Tab Direction User Selectable
LED Color Does Not Contain LED
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Direction User Selectable
Number of Ports 1
Contact Finish Gold
Current Rating 1.2A
Ingress Protection IP67 - Dust Tight, Waterproof
Shielding Shielded
Orientation Straight
Voltage - Rated 100V
Gender Male
Color Black
Connector Type Jack
Termination IDC, Color Coded Block
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Circular Bayonet Coupling, Potted
Published 2009
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Housing Material Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type Panel Mount, Bulkhead
Mount Bulkhead, Panel
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 12 Weeks
