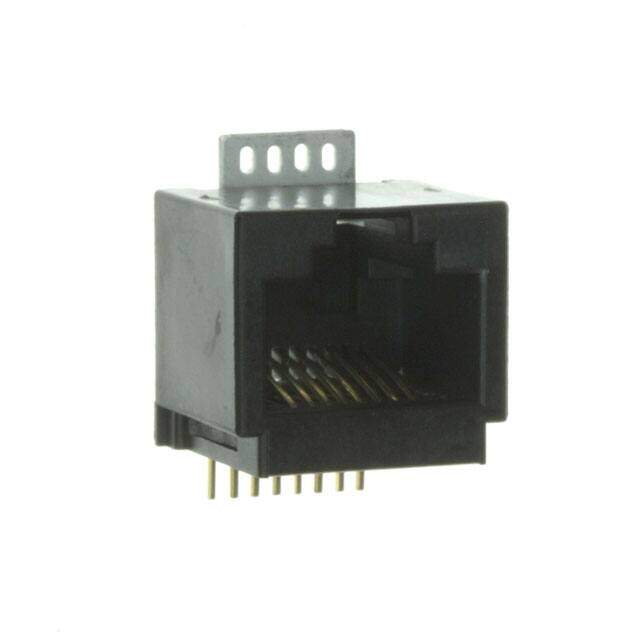

A-2014-2-4-SMT-N
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Modular Connectors - Jacks
Description
Modular Connector Jack
PDF
/
Buying Options
Total Price: USD $1.34
Unit Price: USD $1.3376
≥1 USD $1.3376
≥10 USD $1.16776
≥100 USD $1.117952
≥500 USD $1.09296
Inventory: 52
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Plating Thickness 6μin
Contact Finish Thickness 6.00μin 0.152μm
Technical
Tab Direction User Selectable
LED Color Does Not Contain LED
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Insulator Color BLACK
Durability 500 Cycles
Number of Ports 1
Insulation Resistance 500000000Ohm
Contact Resistance 20mOhm
Contact Style TELCOM, MODULAR
Body Depth 0.504 inch
Contact Gender MALE
PCB Contact Pattern RECTANGULAR
Body Length or Diameter 0.606 inch
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Shielding Unshielded
Orientation Vertical
Total Number of Contacts 8
Subcategory Telecom and Datacom Connectors
Connector Type Jack
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Solder Retention
Published 2014
Packaging Cut Tape (CT)
Operating Temperature -40°C~85°C
Physical
Mounting Option 1 LOCKING
Insulation Material NYLON
Mounting Type Surface Mount
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 23 Weeks
