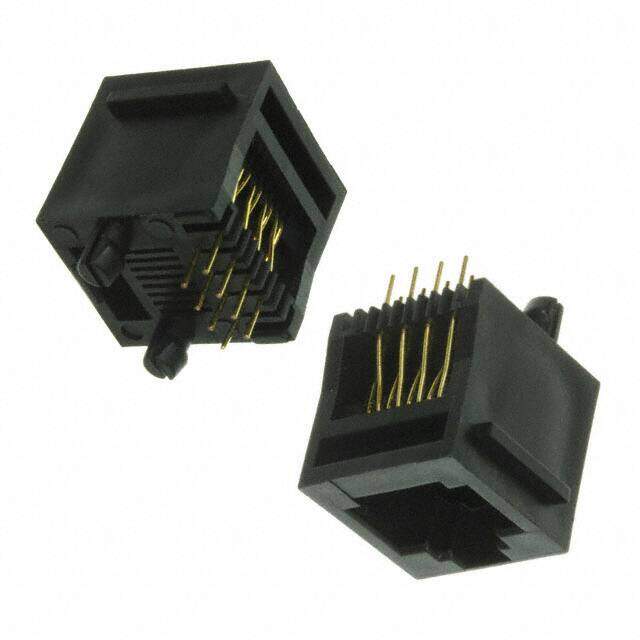

A-2014-2-4-R
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Modular Connectors - Jacks
Description
CONN MOD JACK 8P8C VERT UNSHLD
PDF
/
Buying Options
Total Price: USD $0.69
Unit Price: USD $0.6864
≥1 USD $0.6864
≥10 USD $0.58344
≥100 USD $0.55968
≥500 USD $0.5478
≥1000 USD $0.523987
≥3000 USD $0.476406
Inventory: 1098
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Plating Thickness 6μin
Contact Finish Thickness 6.00μin 0.152μm
Technical
Tab Direction User Selectable
LED Color Does Not Contain LED
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Direction User Selectable
Insulator Color BLACK
Durability 500 Cycles
Number of Ports 1
Body/Shell Style RECEPTACLE
Insulation Resistance 500000000Ohm
Contact Resistance 20mOhm
Contact Style TELCOM, MODULAR
Body Depth 0.645 inch
Contact Gender MALE
Body Breadth 0.65 inch
PCB Contact Pattern STAGGERED
Body Length or Diameter 0.705 inch
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Terminal Pitch 2.54mm
Shielding Unshielded
Orientation Vertical
Total Number of Contacts 8
Subcategory Telecom and Datacom Connectors
HTS Code 8536.69.40.30
Additional Feature ROHS COMPLIANT
Connector Type Jack
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Lock, Panel Stops
JESD-609 Code e4
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Housing Material Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 23 Weeks
