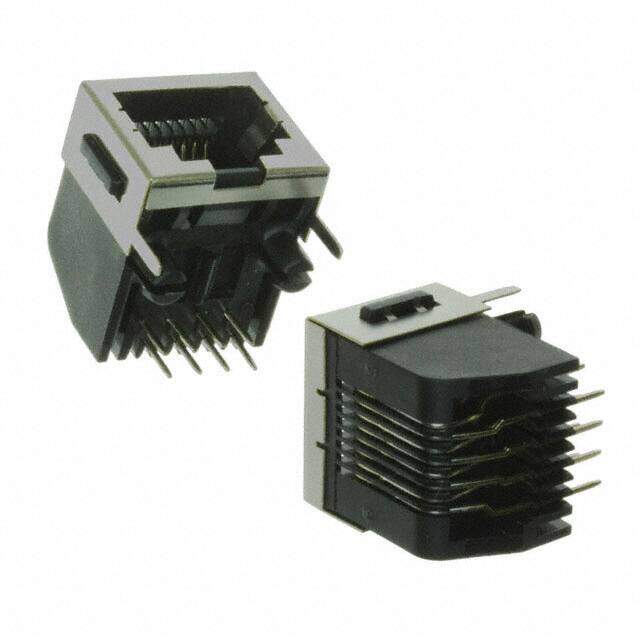

A-2004-2-4-LP/S-R
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Modular Connectors - Jacks
Description
CONN MOD JACK 8P8C R/A SHIELDED
PDF
/
Buying Options
Total Price: USD $0.94
Unit Price: USD $0.9416
≥1 USD $0.9416
≥10 USD $0.79464
≥100 USD $0.762432
≥500 USD $0.74624
≥1000 USD $0.71368
≥3000 USD $0.648824
Inventory: 1220
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 23 Weeks
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT), Glass Filled
Technical
Operating Temperature -40°C~85°C
Packaging Tray
JESD-609 Code e4
Feature Board Lock, Panel Stops
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Jack
Additional Feature ROHS COMPLIANT
Subcategory Telecom and Datacom Connectors
Pitch 2.54mm
Orientation 90° Angle (Right)
Shielding Shielded
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Body Length or Diameter 0.697 inch
Number of Contacts 8
PCB Contact Pattern STAGGERED
Body Breadth 0.535 inch
Contact Gender MALE
Body Depth 0.724 inch
Contact Style TELCOM, MODULAR
Contact Resistance 20mOhm
Insulation Resistance 500000000Ohm
Body/Shell Style RECEPTACLE
Max Voltage Rating (AC) 120V
Max Current Rating 1.5A
Number of Ports 1
Durability 500 Cycles
Insulator Color BLACK
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
LED Color Does Not Contain LED
Tab Direction Down
Dimensions
Contact Finish Thickness 6.00μin 0.152μm
Plating Thickness 6μin
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
