RJF2PEM2G00
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Modular Connectors - Jacks
Description

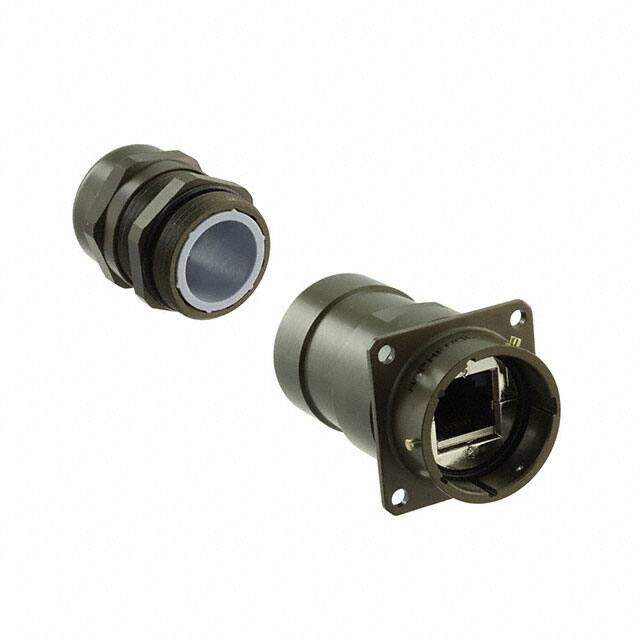

Modular Connectors / Ethernet Connectors 8-Hole RJ45 Cordset Inline Sq Flange Rec
PDF
/
Buying Options
Total Price: USD $82.54
Unit Price: USD $82.544
≥1 USD $82.544
≥10 USD $75.746
≥100 USD $72.83261
≥500 USD $70.404928
≥1000 USD $66.52052
Inventory: 197
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Flanges, Panel
Mounting Type Panel Mount, Square Flange
Housing Material Cadmium
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2006
Series RJF
Feature Circular Bayonet Coupling
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Board, Solder
Connector Type Jack
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color Green
Number of Rows 1
Gender Female
Orientation Straight
Shielding Unshielded
Ingress Protection IP67 - Dust Tight, Waterproof
Number of Contacts 8
Number of Ports 1
Direction User Selectable
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
LED Color Does Not Contain LED
Tab Direction User Selectable
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
Ratings Cat5e
