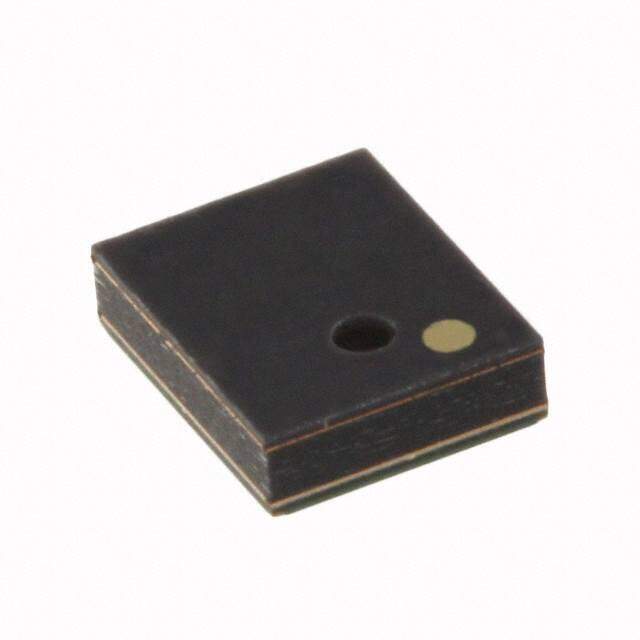

MP45DT02TR
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Microphones
Description
MIC MEMS DIGITAL PDM OMNI -26DB
PDF
/
Buying Options
Total Price: USD $0.44
Unit Price: USD $0.4427
≥1 USD $0.4427
≥10 USD $0.36385
≥100 USD $0.35245
≥500 USD $0.34105
≥1000 USD $0.32965
Inventory: 243893
Minimum: 1
-
+
Technical Details
Dimensions
Length 4.72mm
Height 1.38mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Technical
S/N Ratio 61dB
Port Location Top
Sensitivity -26dB ±3dB @ 94dB SPL
Frequency Range 100Hz~10kHz
Voltage Range 1.64V~3.6V
Direction Omnidirectional
Operating Supply Current 650μA
Min Supply Voltage 1.64V
Max Supply Voltage 3.6V
Number of Channels 1
Temperature Grade OTHER
Output Type Digital, PDM
Operating Temperature (Min) -30°C
Operating Temperature (Max) 85°C
Pin Count 6
Base Part Number MP45
Depth 1.375mm
Supply Voltage 1.8V
Number of Functions 1
Terminal Form BUTT
Terminal Position BOTTOM
Technology CMOS
Voltage - Rated 1.8V
Type MEMS (Silicon)
ECCN Code EAR99
Termination Solder Pads
Number of Terminations 6
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Pbfree Code yes
Size / Dimension 0.186Lx0.148W 4.72mmx3.76mm
Packaging Tape & Reel (TR)
Physical
Shape Rectangular
Number of Pins 6
Mount Surface Mount
