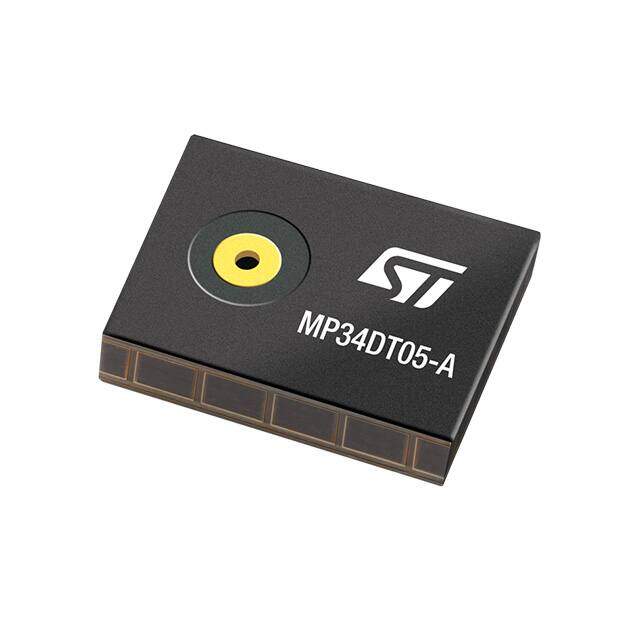

MP34DT05TR-A
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Microphones
Description
MEMS AUD MIC SENSOR OMNI 4HCLGA
PDF
/
Buying Options
Total Price: USD $1.07
Unit Price: USD $1.07445
≥1 USD $1.07445
≥10 USD $0.8816
≥100 USD $0.85405
≥500 USD $0.8265
≥1000 USD $0.79895
Inventory: 199543
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Physical
Surface Mount YES
Shape Rectangular
Manufacturer Package Identifier HCLGA-DM00231908
Technical
Packaging Tape & Reel (TR)
Size / Dimension 0.118Lx0.157W 3.00mmx4.00mm
JESD-609 Code e4
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 4
Termination Solder Pads
Type MEMS (Silicon)
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Technology CMOS
Terminal Position BOTTOM
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Frequency 2.4MHz
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number MP34
JESD-30 Code R-CBGA-N4
Output Type Digital, PDM
Operating Supply Voltage 1.8V
Temperature Grade INDUSTRIAL
Max Supply Voltage 3.6V
Min Supply Voltage 1.6V
Current 650μA
Direction Omnidirectional
Frequency Range 100Hz~10kHz
Sensitivity -26dB ±3dB @ 94dB SPL
Port Location Top
S/N Ratio 64dB
Dimensions
Height 1.1mm
Length 4mm
Width 3mm
Compliance
RoHS Status ROHS3 Compliant
