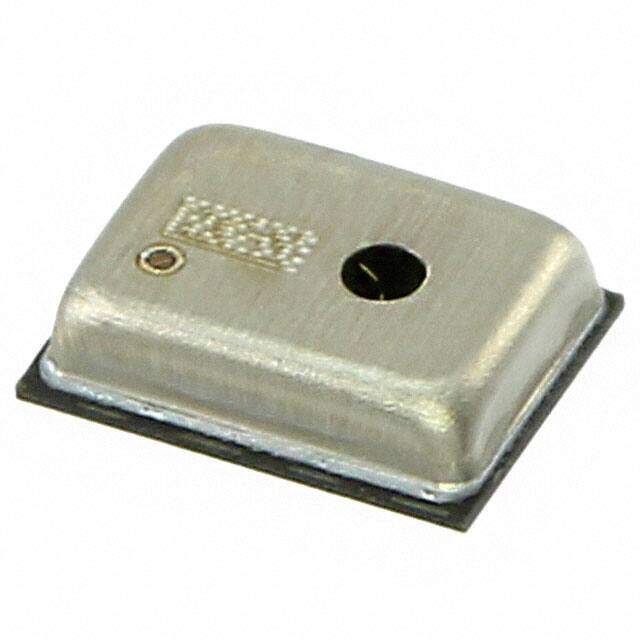

MP34DT01TR-M image
Favorite
MP34DT01TR-M image
Favorite

MP34DT01TR-M

STMicroelectronics
RoHS
RoHS RoHS compliant
Package /
Category Audio Products / Microphones
Description MIC MEMS DIGITAL PDM OMNI 5HCLGA
PDF
/
Buying Options
Total Price: USD $0.65
Unit Price: USD $0.64505
≥1 USD $0.64505
≥10 USD $0.52915
≥100 USD $0.513
≥500 USD $0.4959
≥1000 USD $0.47975
Inventory: 114295
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC

Dimensions

Height 1.06mm

Technical

S/N Ratio 61dB
Port Location Top
Sensitivity -26dB ±3dB @ 94dB SPL
Frequency Range 20Hz~10kHz
Voltage Range 1.64V~3.6V
Direction Omnidirectional
Operating Supply Current 600μA
Min Supply Voltage 1.64V
Max Supply Voltage 3.6V
Temperature Grade INDUSTRIAL
Operating Supply Voltage 1.8V
Output Type Digital, PDM
Base Part Number MP34
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 3mm
Supply Voltage 1.8V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form NO LEAD
Terminal Position BOTTOM
Technology CMOS
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Type MEMS (Silicon)
ECCN Code EAR99
Termination Solder Pads
Number of Terminations 4
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Size / Dimension 0.157Lx0.118W 4.00mmx3.00mm
Packaging Tape & Reel (TR)

Physical

Shape Rectangular
Number of Pins 4
Mount Solder Pad
