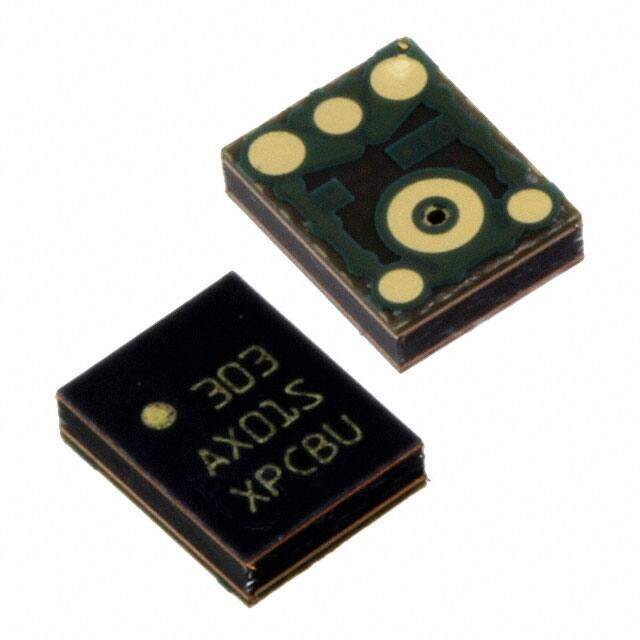

MP33AB01HTR
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Microphones
Description
MEMS Microphones MEMS Audio SM 125dBSPL 63dB
PDF
/
Buying Options
Total Price: USD $4.15
Unit Price: USD $4.1477
≥1 USD $4.1477
≥10 USD $3.40385
≥100 USD $3.29745
≥500 USD $3.19105
≥1000 USD $3.08465
Inventory: 23287
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height 1.1mm
Technical
S/N Ratio 66dB
Port Location Bottom
Sensitivity -38dB ±3dB @ 94dB SPL
Frequency Range 100Hz~10kHz
Voltage Range 1.5V~3.6V
Direction Omnidirectional
Nominal Supply Current 250μA
Operating Supply Current 250μA
Min Supply Voltage 1.5V
Max Supply Voltage 3.6V
Operating Supply Voltage 2.2V
Output Type Analog
Base Part Number MP33
Depth 1mm
HTS Code 8542.39.00.01
Min Operating Temperature -30°C
Max Operating Temperature 100°C
Type MEMS (Silicon)
ECCN Code EAR99
Termination Solder Pads
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Size / Dimension 0.148Lx0.116W 3.76mmx2.95mm
Packaging Tape & Reel (TR)
Physical
Shape Rectangular
Contact Plating Gold
