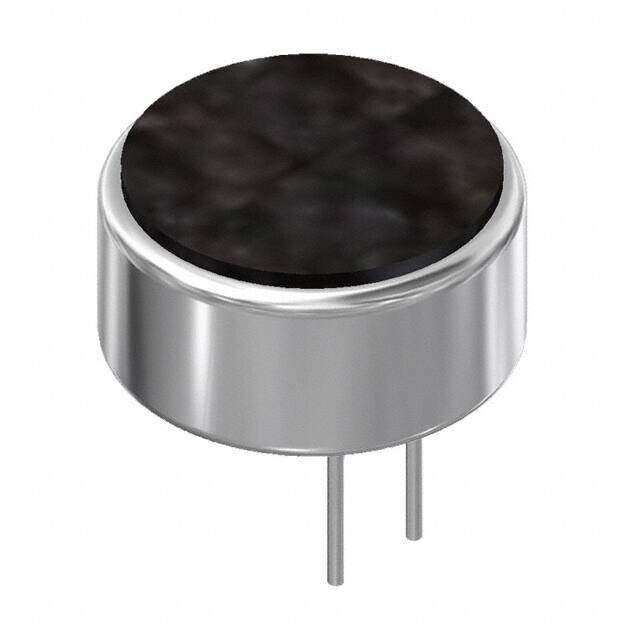

POM-2740P-C33-R
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Microphones
Description
MIC COND ANALOG OMNI -40DB 6MM D
PDF
/
Buying Options
Total Price: USD $1.9
Unit Price: USD $1.9008
≥1 USD $1.9008
≥10 USD $1.57784
≥100 USD $1.285592
≥500 USD $1.073415
Inventory: 218
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Shape Circular
Technical
Packaging Bulk
Published 2010
Series POM
Size / Dimension 0.236Dia 6.00mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pins
Type Electret Condenser
Resistance 2.2kOhm
Voltage - Rated 2V
Depth 2.7mm
Output Type Analog
Operating Supply Current 500μA
Impedance 2.2kOhms
Current - Supply 500μA
Direction Omnidirectional
Voltage Range 2V~10V
Sensitivity -40dB ±3dB
Max Supply Voltage (DC) 10V
Port Location Top
Nominal Supply Voltage (DC) 2V
S/N Ratio 60dB
Dimensions
Diameter 6mm
Height 2.9mm
Length 6mm
Width 6mm
Height (Max) 0.114 2.90mm
Compliance
RoHS Status ROHS3 Compliant
