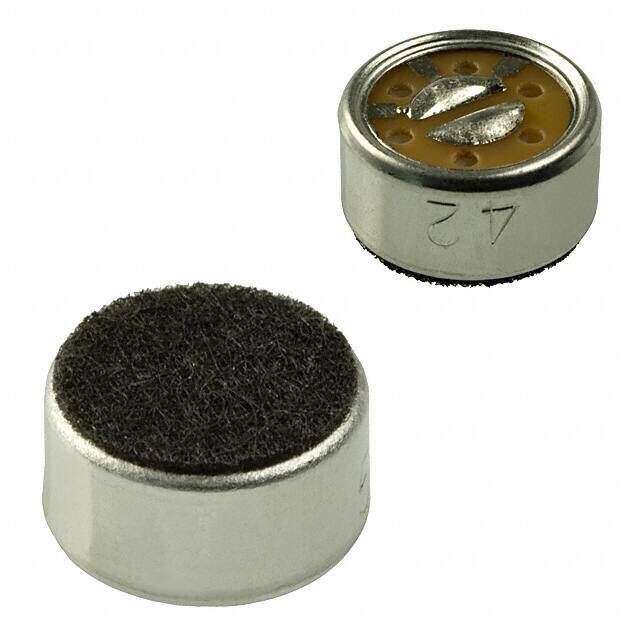

WM-56A103
RoHS
/
Package /
Category Audio Products / Microphones
Description
MIC COND ANLG UNI -47DB 9.7MM D
PDF
/
Inventory: 8720
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Shape Circular
Technical
Packaging Bulk
Published 2000
Series WM-56A103
Size / Dimension 0.382Dia 9.70mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Pads
Type Electret Condenser
Voltage - Rated 1.5V
Voltage - Rated DC 1.5V
Output Type Analog
Operating Supply Current 500μA
Impedance 680Ohms
Current - Supply 500μA
Direction Unidirectional
Voltage Range 1.5V~10V
Frequency Range 100Hz~16kHz
Sensitivity -47dB ±4dB @ 94dB SPL
Port Location Top
S/N Ratio 60dB
Dimensions
Height 5mm
Height (Max) 0.197 5.00mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
