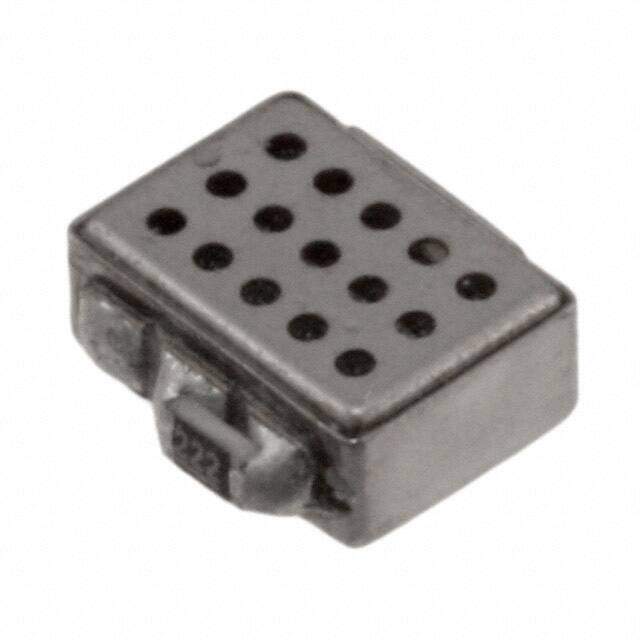

WP-25993-D63
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Microphones
Description
MICROPHONE BOOM ANALOG NC -55DB
PDF
/
Inventory: 1
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings IP67 - Dust Tight, Waterproof
RoHS Status RoHS Compliant
Dimensions
Height (Max) 0.089 2.26mm
Width 3.99mm
Length 5.56mm
Height 2.26mm
Technical
Port Location Bottom, Top
Sensitivity -55dB ±4dB @ 74dB SPL
Frequency Range 100Hz~4kHz
Voltage Range 1.3V~10V
Direction Noise Cancelling
Current - Supply 300μA
Impedance 2kOhms
Operating Supply Current 300μA
Output Type Analog
Frequency 10kHz
Current Rating 300μA
Depth 2.26mm
Voltage - Rated 1.3V
Type Boom
Termination Wire Leads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.219Lx0.157W 5.56mmx3.99mm
Series WP
Published 2008
Packaging Tray
Physical
Shape Rectangular
Mount Wire
Supply Chain
Factory Lead Time 8 Weeks
