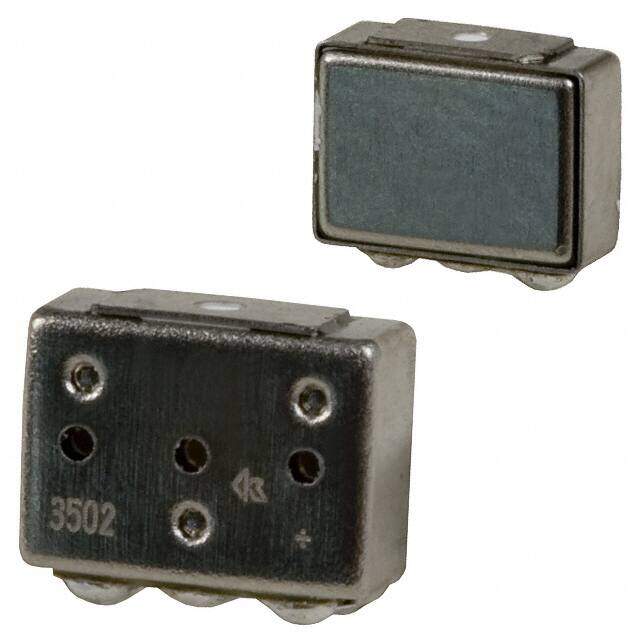

WP-23502-000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Microphones
Description
MICROPHONE COND ANALOG OMNI
PDF
/
Buying Options
Total Price: USD $29.79
Unit Price: USD $29.788
≥1 USD $29.788
≥10 USD $25.0096
≥100 USD $23.53824
≥500 USD $22.802736
Inventory: 815
Minimum: 1
-
+
Technical Details
Compliance
Ratings Waterproof
RoHS Status RoHS Compliant
Dimensions
Height 2.26mm
Technical
Port Location Top
Sensitivity -52dB ±3dB @ 74dB SPL
Frequency Range 100Hz~4kHz
Voltage Range 1.3V~10V
Direction Omnidirectional
Impedance 4.4kOhm
Operating Supply Current 50μA
Output Type Analog
Frequency 4kHz
Current Rating 50μA
Depth 2.26mm
Voltage - Rated 1.3V
Type Electret Condenser
Termination Solder Pads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.219Lx0.157W 5.56mmx3.99mm
Series WP
Published 2005
Packaging Bulk
Physical
Shape Rectangular
Supply Chain
Factory Lead Time 8 Weeks
