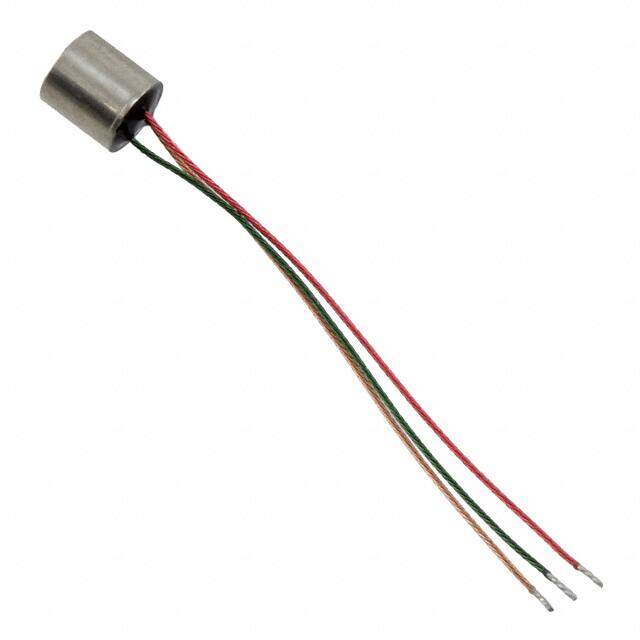

VFG-30747-000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Microphones
Description
MIC COND ANALOG -55DB 3MM D
PDF
/
Buying Options
Total Price: USD $76.82
Unit Price: USD $76.823031
≥1 USD $76.823031
≥200 USD $30.653589
≥500 USD $29.629527
≥1000 USD $29.122748
Inventory: 9356
Minimum: 1
-
+
Technical Details
Technical
Type Electret Condenser
Depth 3.7mm
Current Rating 50μA
Output Type Analog
Operating Supply Voltage 1.3V
Operating Supply Current 50μA
Impedance 4.4kOhm
Frequency Range 100Hz~10kHz
Sensitivity -55dB ±3dB @ 74dB SPL
Port Location Side
Termination Wire Leads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.118Dia 3.00mm
Published 2010
Packaging Bulk
Dimensions
Diameter 3mm
Height 3.7mm
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Ratings Waterproof
Physical
Shape Circular
Mount Wire
Supply Chain
Factory Lead Time 6 Weeks
