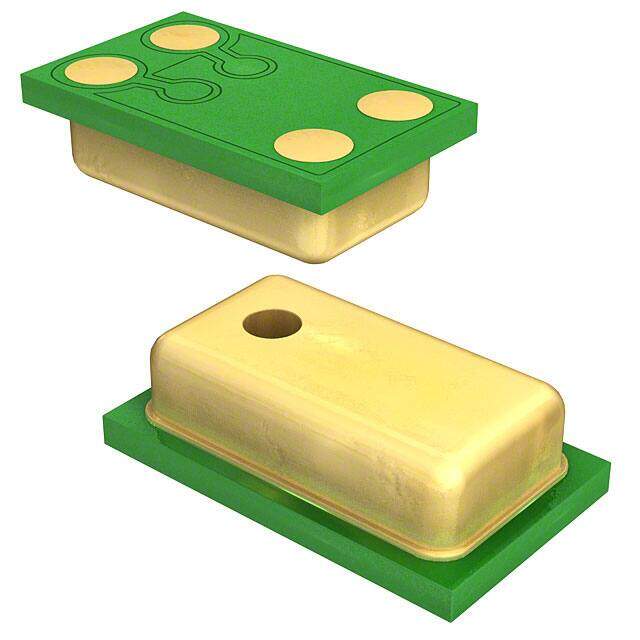

SPQ1410HR5H-B
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Microphones
Description
MIC MEMSANALOG OMNI -42DB
PDF
/
Buying Options
Total Price: USD $0.73
Unit Price: USD $0.7304
≥1 USD $0.7304
≥10 USD $0.61072
≥100 USD $0.566016
≥500 USD $0.53328
≥1000 USD $0.501512
≥3000 USD $0.465837
Inventory: 62426
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Surface Mount YES
Shape Rectangular
Technical
Packaging Tape & Reel (TR)
Published 2013
Series SiSonic?
Size / Dimension 0.148Lx0.088W 3.76mmx2.24mm
Pbfree Code yes
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
Termination Solder Pads
Type MEMS (Silicon)
Max Operating Temperature 100°C
Min Operating Temperature -40°C
Voltage - Rated 3.6V
Terminal Position BOTTOM
Terminal Form BUTT
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Terminal Pitch 2.66mm
Depth 1.2mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-XBCC-B4
Output Type Analog
Operating Supply Voltage 3.6V
Temperature Grade INDUSTRIAL
Supply Voltage-Min (Vsup) 1.5V
Operating Supply Current 160μA
Impedance 400Ohm
Direction Omnidirectional
Voltage Range 1.5V~3.6V
Frequency Range 100Hz~10kHz
Signal to Noise Ratio (SNR) 59 dB
Sensitivity -42dB ±3dB @ 94dB SPL
Port Location Top
Dimensions
Height 1.2mm
Length 3.76mm
Width 2.24mm
Compliance
RoHS Status RoHS Compliant
