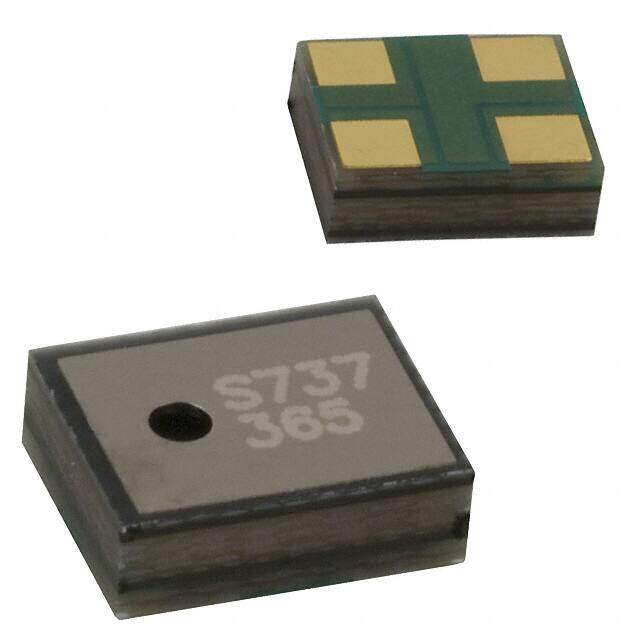

SPM0103ND3-2
RoHS
/
Package /
Category Audio Products / Microphones
Description
MIC MEMS ANALOG OMNI -22DB
PDF
/
Inventory: 1873
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 3.76mm
Length 4.72mm
Height 1.5mm
Technical
S/N Ratio 59dB
Port Location Top
Sensitivity -22dB ±4dB @ 94dB SPL
Frequency Range 100Hz~8kHz
Voltage Range 1.5V~5.5V
Direction Omnidirectional
Impedance 100Ohm
Operating Supply Current 350μA
Supply Voltage-Min (Vsup) 1.5V
Temperature Grade INDUSTRIAL
Output Type Analog
Operating Temperature (Min) -40°C
Operating Temperature (Max) 100°C
JESD-30 Code R-XBCC-B4
Number of Functions 1
Terminal Form BUTT
Terminal Position BOTTOM
Voltage - Rated 5.5V
Type MEMS (Silicon)
Termination Solder Pads
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Size / Dimension 0.186Lx0.148W 4.72mmx3.76mm
Series SiSonic?
Published 2005
Packaging Tape & Reel (TR)
Physical
Shape Rectangular
Surface Mount YES
