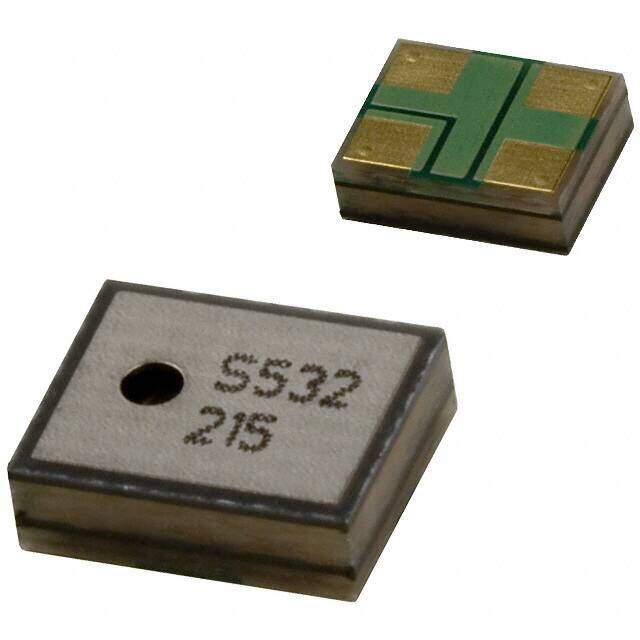

SPM0102ND3-2
RoHS
/
Package /
Category Audio Products / Microphones
Description
MIC MEMS ANALOG OMNI -42DB
PDF
/
Inventory: 4628
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height (Max) 0.067 1.70mm
Width 3.76mm
Length 4.72mm
Height 1.5mm
Technical
S/N Ratio 59dB
Port Location Top
Sensitivity -42dB ±4dB @ 94dB SPL
Frequency Range 100Hz~8kHz
Voltage Range 1.5V~5.5V
Direction Omnidirectional
Current - Supply 250μA
Impedance 100Ohms
Operating Supply Current 250μA
Output Type Analog
Voltage - Rated 5.5V
Type MEMS (Silicon)
Termination Solder Pads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Size / Dimension 0.186Lx0.148W 4.72mmx3.76mm
Series SiSonic?
Published 2005
Packaging Tape & Reel (TR)
Physical
Shape Rectangular
Alternative Model
