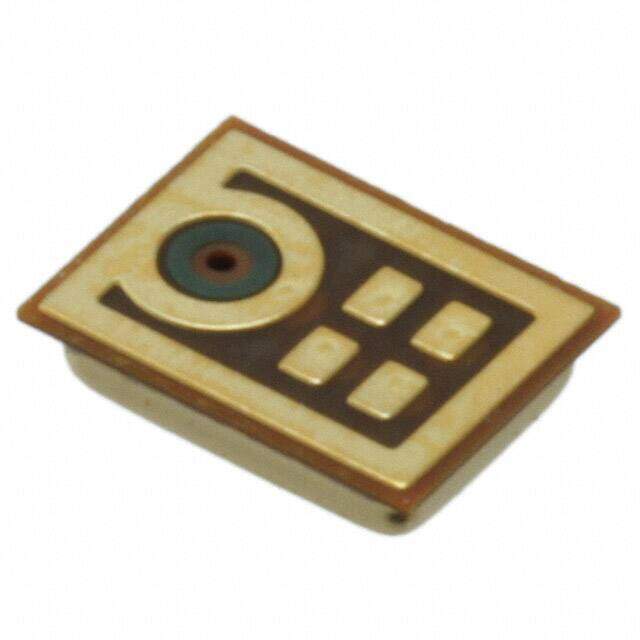

SPK0833LM4H-B-7
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Microphones
Description
MIC SISONIC ZERO HEIGHT DIGITAL
PDF
/
Buying Options
Total Price: USD $0.74
Unit Price: USD $0.7391
≥1 USD $0.7391
≥10 USD $0.6061
≥100 USD $0.5871
≥500 USD $0.5681
≥1000 USD $0.5491
Inventory: 74824
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Shape Rectangular
Technical
Packaging Tape & Reel (TR)
Published 2011
Series SiSonic? SP
Size / Dimension 0.157Lx0.118W 4.00mmx3.00mm
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Pads
Type MEMS (Silicon)
Output Type Digital, PDM
Current - Supply 700μA
Direction Omnidirectional
Voltage Range 1.6V~3.6V
Frequency Range 100Hz~10kHz
Sensitivity -26dB ±3dB @ 94dB SPL
Port Location Bottom
S/N Ratio 63dB
Dimensions
Height (Max) 0.043 1.10mm
Compliance
RoHS Status RoHS Compliant
