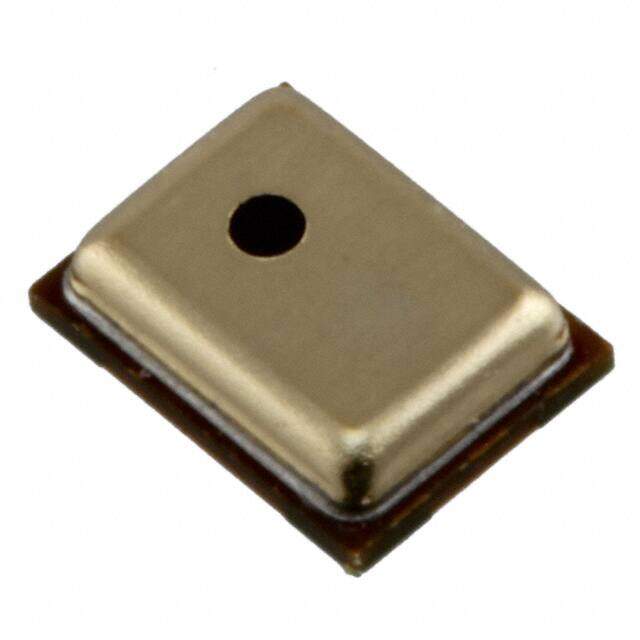

SPK0415HM4H-B-7
RoHS
/
Package /
Category Audio Products / Microphones
Description
MIC MEMSDIGITAL PDM OMNI -26DB
PDF
/
Buying Options
Total Price: USD $0.59
Unit Price: USD $0.5909
≥1 USD $0.5909
≥10 USD $0.48545
≥100 USD $0.47025
≥500 USD $0.45505
≥1000 USD $0.43985
Inventory: 12504
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Shape Rectangular
Technical
Packaging Cut Tape (CT)
Published 2007
Series SiSonic?
Size / Dimension 0.157Lx0.118W 4.00mmx3.00mm
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Pads
Type MEMS (Silicon)
Output Type Digital, PDM
Operating Supply Current 650μA
Direction Omnidirectional
Voltage Range 1.6V~3.6V
Frequency Range 100Hz~10kHz
Sensitivity -26dB ±3dB @ 94dB SPL
Port Location Top
S/N Ratio 61dB
Dimensions
Height 1.08mm
Compliance
RoHS Status RoHS Compliant
