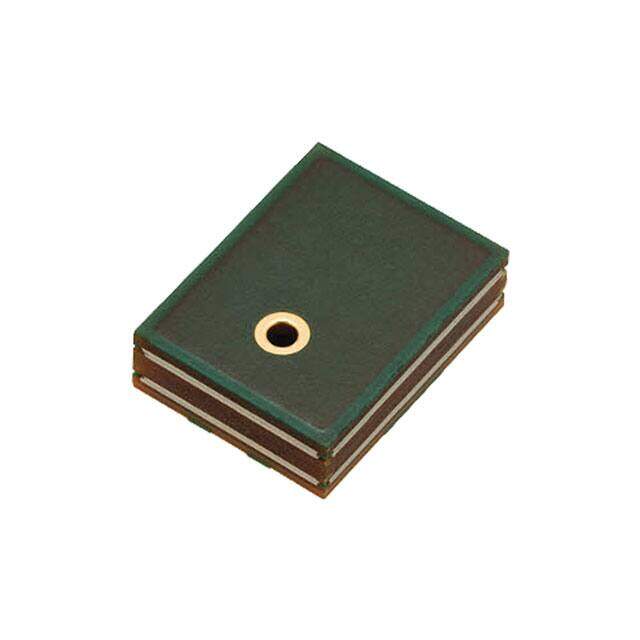

SPH1642HT5H-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Microphones
Description
MIC MEMS ANALOG OMNI -38DB
PDF
/
Buying Options
Total Price: USD $0.59
Unit Price: USD $0.5909
≥1 USD $0.5909
≥10 USD $0.48545
≥100 USD $0.47025
≥500 USD $0.45505
≥1000 USD $0.43985
Inventory: 118893
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 2.65mm
Length 3.5mm
Height 1.1mm
Technical
S/N Ratio 65dB
Port Location Top
Sensitivity -38dB ±1dB @ 94dB SPL
Frequency Range 50Hz~10kHz
Voltage Range 1.5V~3.6V
Direction Omnidirectional
Impedance 500Ohm
Operating Supply Current 185μA
Supply Voltage-Min (Vsup) 1.5V
Temperature Grade INDUSTRIAL
Supply Voltage-Max (Vsup) 3.6V
Output Type Analog
Operating Temperature (Min) -40°C
Operating Temperature (Max) 100°C
JESD-30 Code R-XBCC-B6
Number of Functions 1
Terminal Form BUTT
Terminal Position BOTTOM
Type MEMS (Silicon)
Termination Solder Pads
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Size / Dimension 0.138Lx0.104W 3.50mmx2.65mm
Series SiSonic? SPH
Published 2015
Packaging Tape & Reel (TR)
Physical
Shape Rectangular
Surface Mount YES
Supply Chain
Factory Lead Time 18 Weeks
