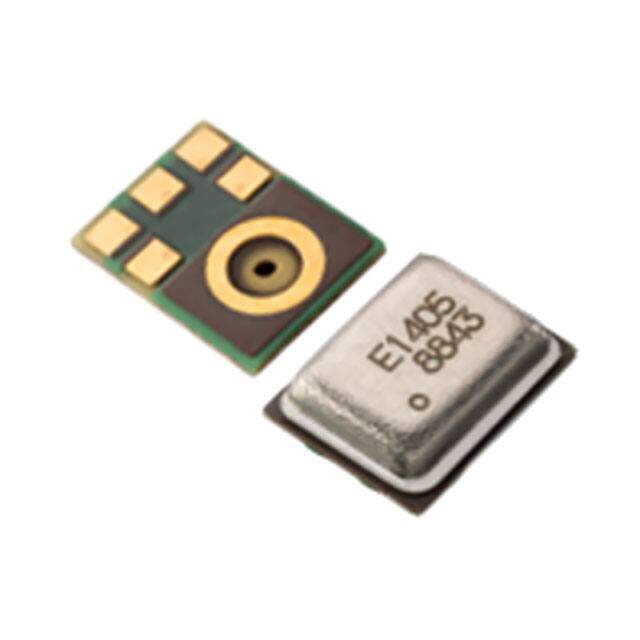

SPH0645LM4H-B
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Microphones
Description
MIC MEMS DIGITAL I2S OMNI -26DB
PDF
/
Buying Options
Total Price: USD $1.69
Unit Price: USD $1.6896
≥1 USD $1.6896
≥10 USD $1.40184
≥100 USD $1.309088
Inventory: 257331
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 49 Weeks
Physical
Surface Mount NO
Shape Rectangular
Technical
Packaging Cut Tape (CT)
Published 2014
Series SiSonic? SPH
Size / Dimension 0.138Lx0.104W 3.50mmx2.65mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
Termination Solder Pads
Type MEMS (Silicon)
Max Operating Temperature 100°C
Min Operating Temperature -40°C
Voltage - Rated 1.8V
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-XXMA-X6
Output Type Digital, I2S
Supply Voltage-Max (Vsup) 3.6V
Temperature Grade COMMERCIAL
Supply Voltage-Min (Vsup) 1.62V
Operating Supply Current 600μA
Direction Omnidirectional
Voltage Range 1.62V~3.6V
Frequency Range 20Hz~10kHz
Sensitivity -26dB ±3dB @ 94dB SPL
Port Location Bottom
S/N Ratio 65dB
Dimensions
Height 1.08mm
Length 3.5mm
Width 2.65mm
Compliance
RoHS Status RoHS Compliant
