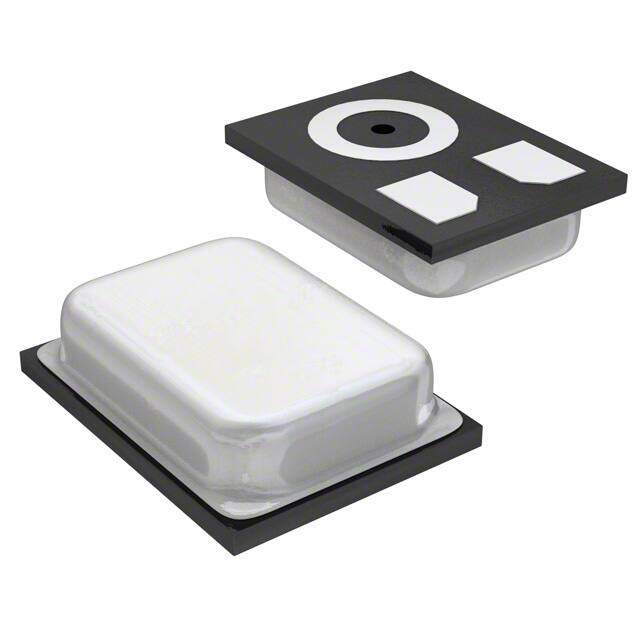

SPA2410LR5H-B
RoHS
/
Package /
Category Audio Products / Microphones
Description
MIC SISONIC ZERO HEIGHT RF
PDF
/
Buying Options
Total Price: USD $123.03
Unit Price: USD $123.02595
≥1 USD $123.02595
≥10 USD $118.9248
≥100 USD $106.6223
Inventory: 1715
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 2.5mm
Length 3.35mm
Height 1.08mm
Technical
Port Location Bottom
Sensitivity -38dB ±3dB @ 94dB SPL
Signal to Noise Ratio (SNR) 63 dB
Frequency Range 100Hz~15kHz
Voltage Range 1.5V~3.6V
Direction Omnidirectional
Impedance 400Ohm
Operating Supply Current 160μA
Supply Voltage-Min (Vsup) 1.5V
Operating Supply Voltage 3.6V
Output Type Analog
JESD-30 Code R-XBCC-X3
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Reach Compliance Code unknown
Depth 1.08mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form UNSPECIFIED
HTS Code 8542.39.00.01
Voltage - Rated 3.6V
Min Operating Temperature -40°C
Max Operating Temperature 100°C
Terminal Finish GOLD OVER NICKEL
Type MEMS (Silicon)
Termination Solder Pads
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e4
Size / Dimension 0.132Lx0.098W 3.35mmx2.50mm
Series SiSonic? SP
Published 2012
Packaging Tape & Reel (TR)
Physical
Shape Rectangular
