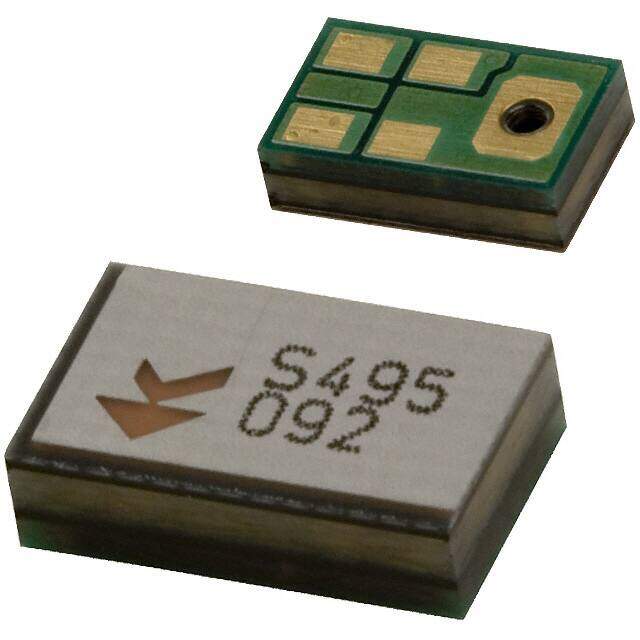

SP0103BE3-5
RoHS
/
Package /
Category Audio Products / Microphones
Description
MICROPHONE MEMS ANALOG OMNI
PDF
/
Inventory: 8983
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height (Max) 0.073 1.85mm
Width 3.76mm
Length 6.15mm
Height 1.65mm
Technical
S/N Ratio 59dB
Port Location Top
Sensitivity -22dB ±4dB @ 94dB SPL
Frequency Range 100Hz~10kHz
Voltage Range 1.5V~5.5V
Direction Omnidirectional
Current - Supply 350μA
Impedance 100Ohms
Operating Supply Current 350μA
Output Type Analog
Voltage - Rated 5.5V
Type MEMS (Silicon)
Termination Solder Pads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Size / Dimension 0.242Lx0.148W 6.15mmx3.76mm
Series SiSonic?
Published 2005
Packaging Cut Tape (CT)
Physical
Shape Rectangular
