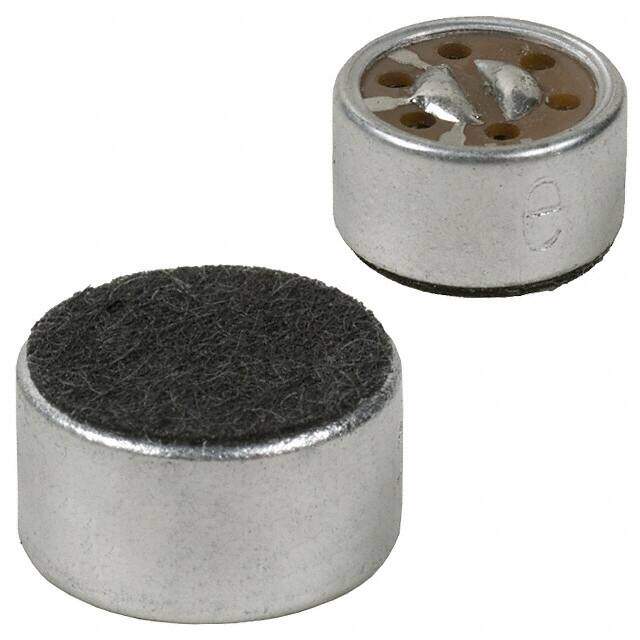

MD9752NSZ-1
RoHS
/
Package /
Category Audio Products / Microphones
Description
MIC COND ANALOG NC -40DB 9.7MM D
PDF
/
Buying Options
Total Price: USD $2.91
Unit Price: USD $2.906761
≥1 USD $2.906761
≥200 USD $1.160604
≥500 USD $1.121217
≥1000 USD $1.101523
Inventory: 3133
Minimum: 1
-
+
Technical Details
Physical
Mount Solder Pad
Shape Circular
Technical
Packaging Bulk
Published 2003
Series MD
Size / Dimension 0.382Dia 9.70mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Pads
Type Electret Condenser
Voltage - Rated 3V
Output Type Analog
Operating Supply Current 500μA
Impedance 2.2kOhms
Current - Supply 500μA
Direction Noise Cancelling
Voltage Range 3V~10V
Frequency Range 100Hz~10kHz
Sensitivity -40dB ±3dB @ 94dB SPL
Outside Diameter 9.7 mm
Port Location Top
S/N Ratio 55dB
Dimensions
Diameter 9.7mm
Height 5.2mm
Height (Max) 0.205 5.20mm
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free
