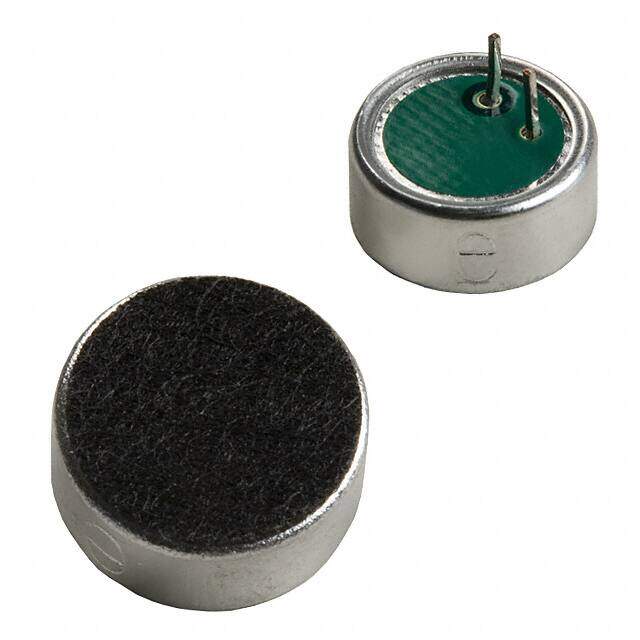

MD9745APA-1
RoHS
/
Package /
Category Audio Products / Microphones
Description
MICROPHONE COND ANALOG OMNI
PDF
/
Buying Options
Total Price: USD $1.02
Unit Price: USD $1.016185
≥1 USD $1.016185
≥200 USD $0.405686
≥500 USD $0.392557
≥1000 USD $0.385993
Inventory: 7496
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status RoHS Compliant
Dimensions
Height (Max) 0.177 4.50mm
Height 4.5mm
Diameter 9.7mm
Technical
S/N Ratio 55dB
Port Location Top
Sensitivity -41dB ±3dB @ 94dB SPL
Frequency Range 100Hz~10kHz
Voltage Range 2V~10V
Direction Omnidirectional
Current - Supply 500μA
Impedance 2.2kOhms
Operating Supply Current 500μA
Output Type Analog
Voltage - Rated 2V
Type Electret Condenser
Termination PC Pins
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Size / Dimension 0.382Dia 9.70mm
Series MD
Published 2004
Packaging Bulk
Physical
Shape Circular
