FG-30077-C36
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Microphones
Description

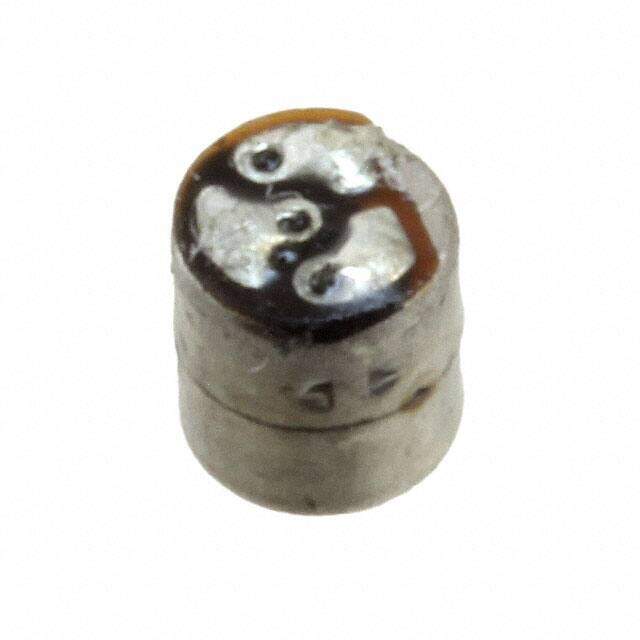

Microphones Omni-Directional Microphone
PDF
/
Buying Options
Total Price: USD $78.03
Unit Price: USD $78.034837
≥1 USD $78.034837
≥200 USD $31.136736
≥500 USD $30.095607
≥1000 USD $29.582263
Inventory: 8859
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height (Max) 0.102 2.60mm
Length 2.56mm
Height 2.6mm
Diameter 2.57mm
Technical
Port Location Top
Sensitivity -53dB ±3dB @ 74dB SPL
Frequency Range 100Hz~10kHz
Voltage Range 0.9V~1.6V
Direction Omnidirectional
Current - Supply 50μA
Impedance 4.4kOhms
Operating Supply Current 50μA
Output Type Analog
Frequency 10kHz
Current Rating 50μA
Depth 2.6mm
Voltage - Rated 1.3V
Type Electret Condenser
Termination Solder Pads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Size / Dimension 0.101Dia 2.57mm
Series FG
Published 2013
Packaging Tray
Physical
Shape Circular
Mount Solder
Supply Chain
Factory Lead Time 6 Weeks
Alternative Model
