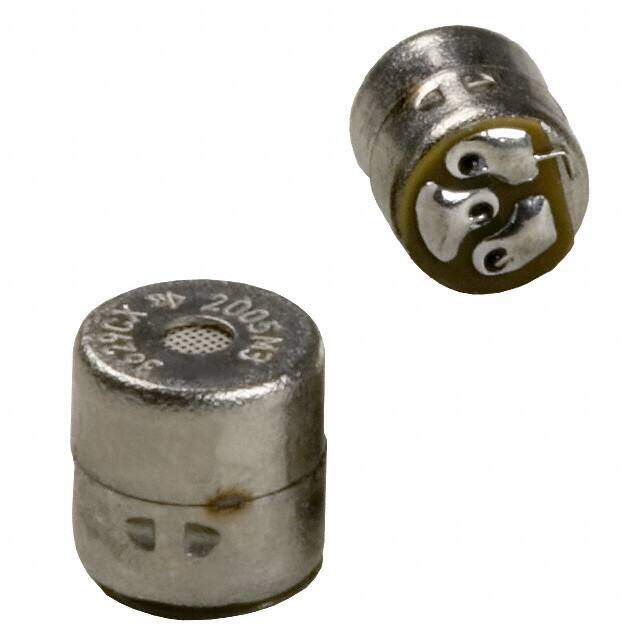

FG-23629-D65
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Microphones
Description
MICROPHONE COND ANALOG OMNI
PDF
/
Inventory: 1
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Shape Circular
Technical
Published 2011
Series FG
Size / Dimension 0.101Dia 2.57mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Pads
Type Electret Condenser
Voltage - Rated 1.3V
Frequency 10kHz
Output Type Analog
Operating Supply Current 50μA
Impedance 4.4kOhm
Direction Omnidirectional
Voltage Range 1.3V~3V
Frequency Range 100Hz~10kHz
Sensitivity -53dB ±3dB @ 74dB SPL
Port Location Top
Dimensions
Height 3.22mm
Compliance
RoHS Status RoHS Compliant
