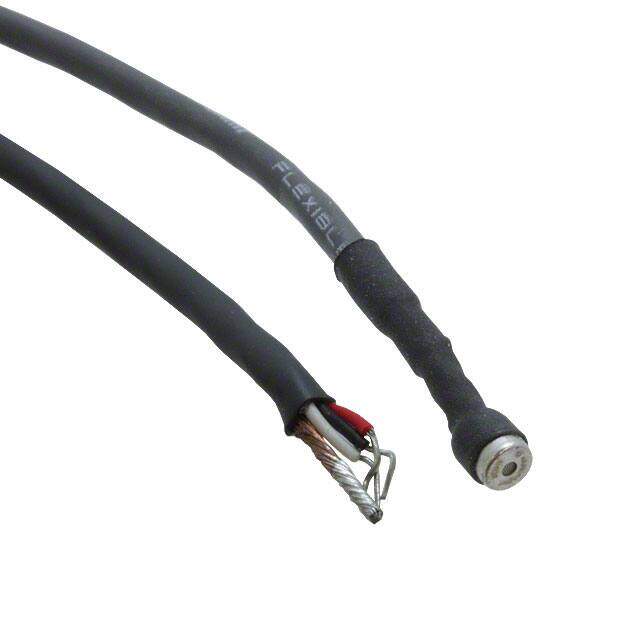

FG-23329-P07
RoHS
/
Package /
Category Audio Products / Microphones
Description
Microphones Omni-Directional Microphone
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Shape Circular
Technical
Packaging Bulk
Published 2005
Series FG
Size / Dimension 0.101Dia 2.57mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Wire Leads
Type Electret Condenser
Resistance 4.4kOhm
Voltage - Rated 1.3V
Depth 2.57mm
Current Rating 50μA
Frequency 10kHz
Output Type Analog
Max Supply Voltage 3V
Min Supply Voltage 900mV
Operating Supply Current 50μA
Impedance 4.4kOhm
Direction Omnidirectional
Voltage Range 1.3V~3V
Frequency Range 100Hz~10kHz
Sensitivity -53dB ±3dB @ 74dB SPL
Outside Diameter 2.565 mm
Port Location Top
Dimensions
Diameter 2.57mm
Height 2.57mm
Compliance
REACH SVHC No SVHC
RoHS Status Non-RoHS Compliant
