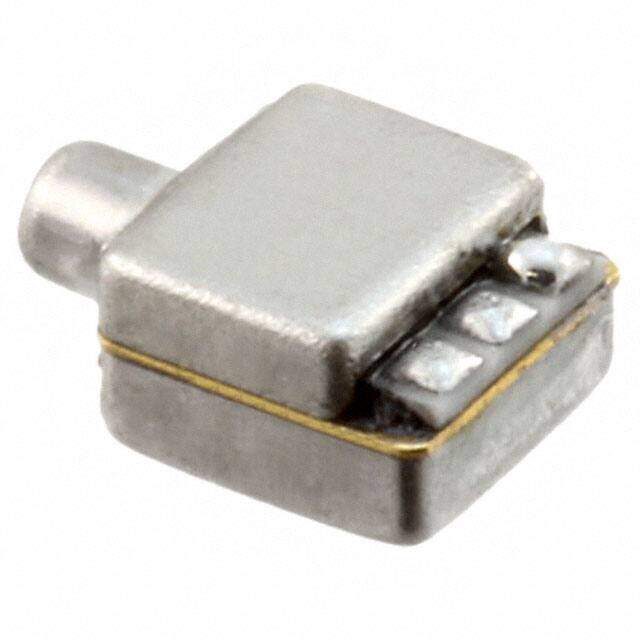

EM-24446-C36
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Microphones
Description
Microphones Omni-Directional Microphone
PDF
/
Buying Options
Total Price: USD $23.06
Unit Price: USD $23.056
≥1 USD $23.056
≥10 USD $18.79416
≥100 USD $17.24096
≥500 USD $16.28726
Inventory: 113
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height 2.21mm
Technical
Port Location Side
Sensitivity -56dB ±3dB @ 74dB SPL
Frequency Range 100Hz~5.5kHz
Voltage Range 0.9V~1.6V
Direction Omnidirectional
Impedance 4.4kOhm
Operating Supply Current 50μA
Output Type Analog
Frequency 5.5kHz
Current Rating 50μA
Depth 2.21mm
Voltage - Rated 1.3V
Type Electret Condenser
Termination Solder Pads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.141Lx0.141W 3.57mmx3.57mm
Series EM
Published 2012
Packaging Tray
Physical
Shape Square
Mount Solder
Supply Chain
Factory Lead Time 8 Weeks
