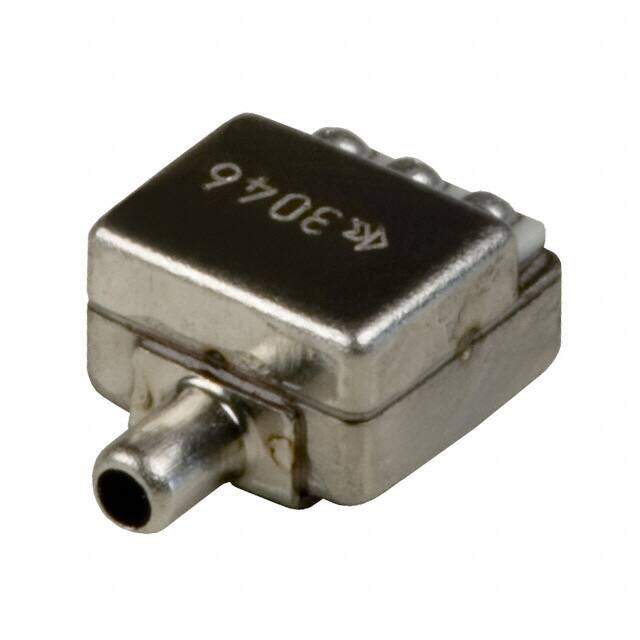

EM-23046-C36
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Microphones
Description
MICROPHONE COND ANALOG OMNI
PDF
/
Buying Options
Total Price: USD $16.75
Unit Price: USD $16.753917
≥1 USD $16.753917
≥200 USD $6.484413
≥500 USD $6.255969
≥1000 USD $6.143059
Inventory: 1129
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height 3.61mm
Technical
Port Location Side
Sensitivity -56dB ±3dB @ 74dB SPL
Frequency Range 100Hz~5kHz
Voltage Range 0.9V~10V
Direction Omnidirectional
Impedance 4.4kOhm
Operating Supply Current 50μA
Output Type Analog
Frequency 5kHz
Current Rating 50μA
Depth 3.61mm
Voltage - Rated 1.3V
Type Electret Condenser
Termination Screw Terminals
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.141Lx0.141W 3.57mmx3.57mm
Series EM
Published 2007
Packaging Bulk
Physical
Shape Square
Supply Chain
Factory Lead Time 6 Weeks
