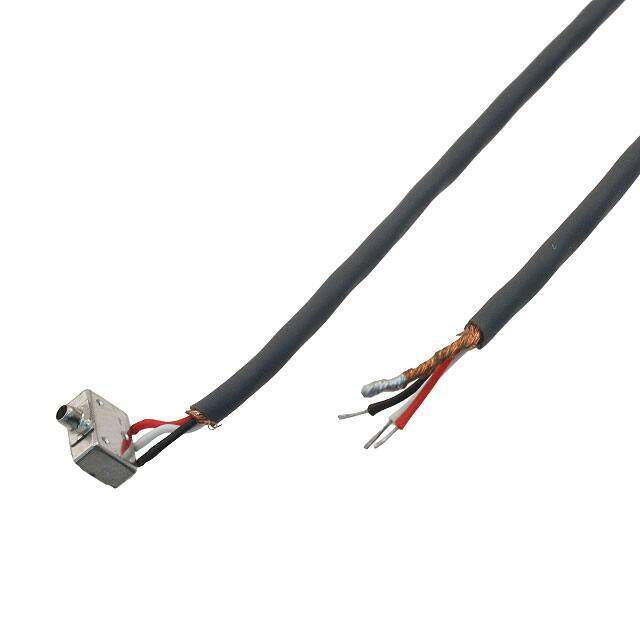

EK-23024-P07
RoHS
/
Package /
Category Audio Products / Microphones
Description
MICROPHONE COND ANALOG OMNI
PDF
/
Buying Options
Total Price: USD $79.35
Unit Price: USD $79.354302
≥1 USD $79.354302
≥200 USD $31.663209
≥500 USD $30.605012
≥1000 USD $30.082478
Inventory: 7784
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height 2.21mm
Technical
Port Location Side
Sensitivity -53dB ±2dB @ 74dB SPL
Frequency Range 100Hz~10kHz
Voltage Range 1.3V~10V
Direction Omnidirectional
Impedance 4.4kOhm
Operating Supply Current 50μA
Output Type Analog
Frequency 5.5kHz
Current Rating 50μA
Depth 2.21mm
Voltage - Rated 1.3V
Type Electret Condenser
Termination Wire Leads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Size / Dimension 0.219Lx0.157W 5.56mmx3.99mm
Series EK
Published 2005
Packaging Bulk
Physical
Shape Rectangular
Supply Chain
Factory Lead Time 6 Weeks
