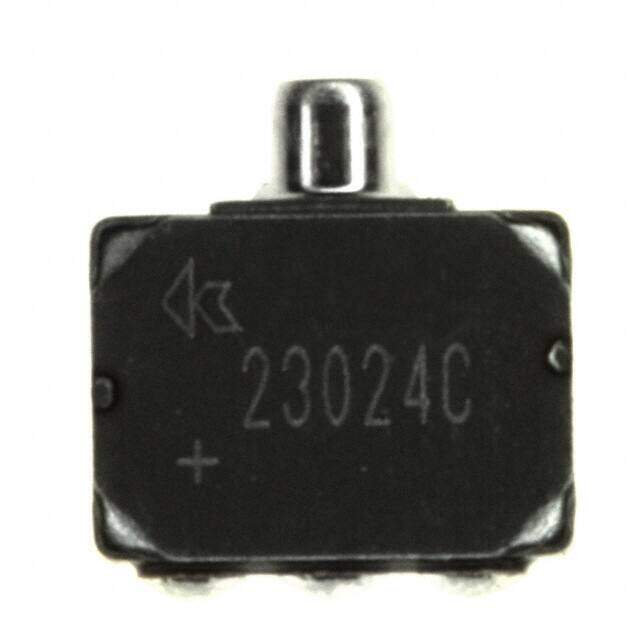

EK-23024-C05
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Microphones
Description
Microphones 5.56 X 3.98 X 2.21MM -53 SENS, 12S PORT
PDF
/
Inventory: 1608
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height (Max) 0.089 2.26mm
Technical
Port Location Top
Sensitivity -53dB ±2dB
Frequency Range 100Hz~5.5kHz
Direction Omnidirectional
Current - Supply 50μA
Impedance 4.4kOhm
Output Type Analog
Depth 2.21mm
Voltage - Rated 1.3V
Type Electret Condenser
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.219Lx0.157W 5.56mmx3.99mm
Series EK
Published 2006
Packaging Bulk
Supply Chain
Factory Lead Time 4 Weeks
