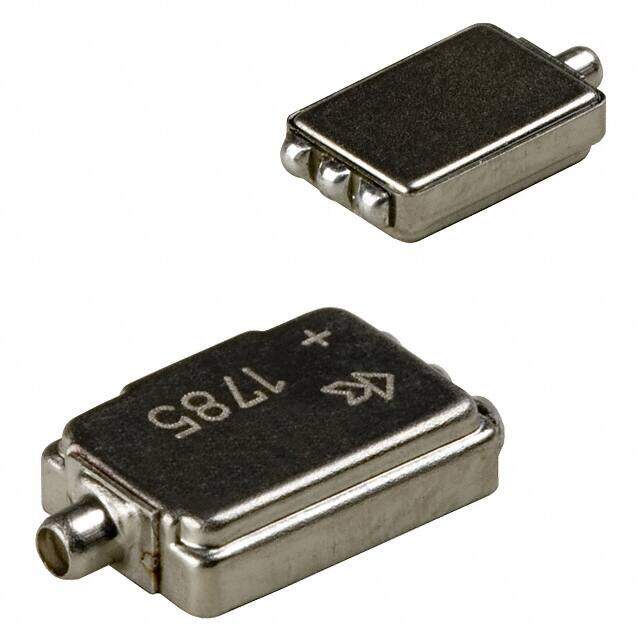

BL-21785-000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Microphones
Description
MICROPHONE PIEZO ANALOG OMNI
PDF
/
Buying Options
Total Price: USD $121.16
Unit Price: USD $121.164915
≥1 USD $121.164915
≥200 USD $48.34623
≥500 USD $46.73005
≥1000 USD $45.931807
Inventory: 8705
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height 2.29mm
Technical
Port Location Side
Sensitivity -69dB ±3dB @ 74dB SPL
Frequency Range 20Hz~10kHz
Voltage Range 0.9V~1.9V
Direction Omnidirectional
Impedance 4kOhm
Operating Supply Current 160μA
Output Type Analog
Frequency 10kHz
Current Rating 160μA
Depth 2.29mm
Voltage - Rated 1.3V
Type Piezo
Termination Solder Pads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Size / Dimension 0.310Lx0.218W 7.87mmx5.54mm
Series BL
Published 2006
Packaging Bulk
Physical
Shape Rectangular
Supply Chain
Factory Lead Time 6 Weeks
