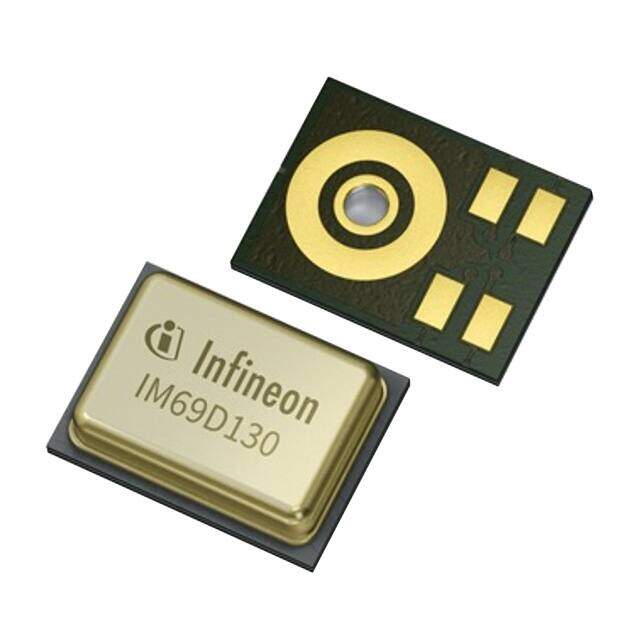

IM69D130V01XTSA1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Microphones
Description
MIC MEMS DIGITAL OMNI 95DB
PDF
/
Buying Options
Total Price: USD $1.17
Unit Price: USD $1.1704
≥1 USD $1.1704
≥10 USD $0.97152
≥100 USD $0.897952
≥500 USD $0.879824
Inventory: 86937
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 4mm
Height 1.3mm
Technical
S/N Ratio 69dB
Ambient Temperature Range High 70°C
Port Location Bottom
Sensitivity -36dB ±1dB @ 94dB SPL
Frequency Range 20Hz~20kHz
Voltage Range 1.62V~3.6V
Direction Omnidirectional
Current - Supply 1.3mA
Min Supply Voltage 1.62V
Max Supply Voltage 3.6V
Temperature Grade OTHER
Output Type Digital, PDM
JESD-30 Code R-PBGA-N5
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form NO LEAD
HTS Code 8542.39.00.01
Type MEMS (Silicon)
ECCN Code EAR99
Termination Solder Pads
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.157Lx0.118W 4.00mmx3.00mm
Published 2017
Packaging Tape & Reel (TR)
Physical
Shape Rectangular
Surface Mount YES
Supply Chain
Factory Lead Time 10 Weeks
