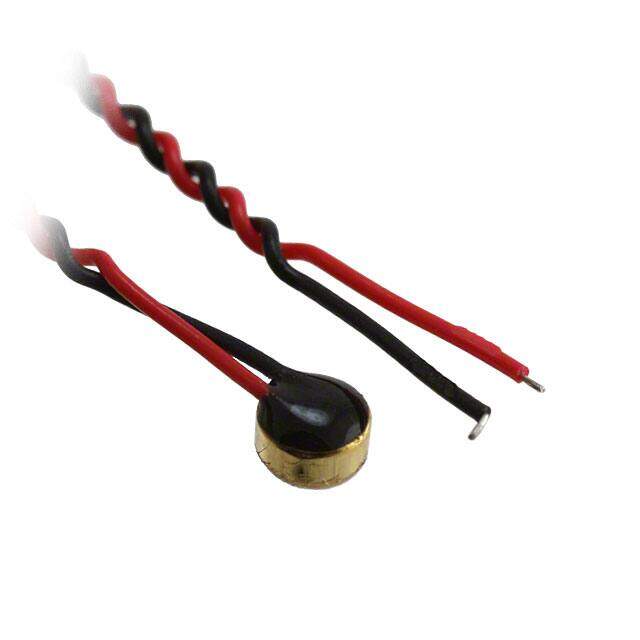

CME-1538-100LB
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Microphones
Description
4.0 mm, Omnidirectional, Wire Leads, 2.0 Vdc, IP67 Rated, Electret Condenser Microphone
PDF
/
Buying Options
Total Price: USD $4.08
Unit Price: USD $4.081
≥1 USD $4.081
≥10 USD $3.85
≥100 USD $3.63208
≥500 USD $3.42649
≥1000 USD $3.23253
≥3000 USD $3.04956
Inventory: 1365
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
Ratings IP67 - Dust Tight, Waterproof
Dimensions
Height (Max) 0.114 2.90mm
Height 2.9mm
Technical
S/N Ratio 58dB
Port Location Top
Sensitivity -38dB ±3dB @ 94dB SPL
Frequency Range 20Hz~20kHz
Voltage Range 2V~10V
Direction Omnidirectional
Current - Supply 500μA
Impedance 2.2kOhms
Operating Supply Current 500μA
Output Type Analog
Voltage - Rated 2V
Type Electret Condenser
Termination Wire Leads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.157Dia 4.00mm
Published 2011
Packaging Bulk
Physical
Shape Circular
Mount Wire
Supply Chain
Factory Lead Time 14 Weeks
