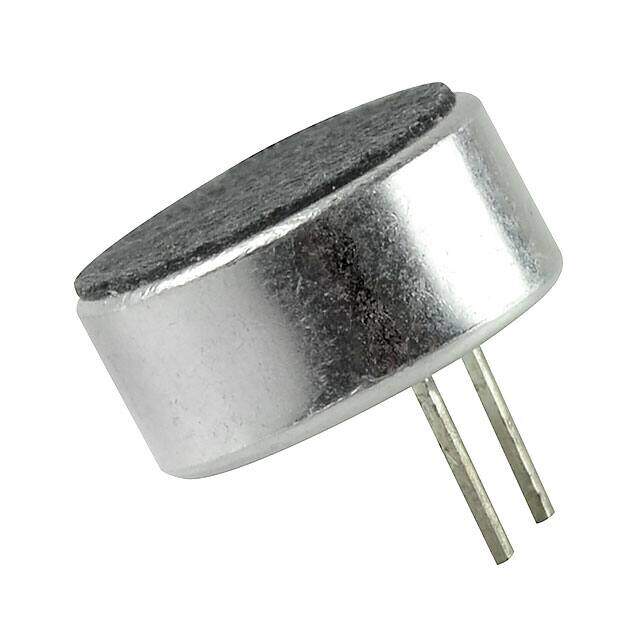

CMC-9745-44P
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Microphones
Description
9.7 mm, Omnidirectional, PCB Mount, 3.0 Vdc, Electret Condenser Microphone
PDF
/
Buying Options
Total Price: USD $0.7
Unit Price: USD $0.704
≥1 USD $0.704
≥10 USD $0.5984
≥100 USD $0.55968
≥500 USD $0.530816
≥1000 USD $0.502744
≥3000 USD $0.471918
Inventory: 791
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height (Max) 0.183 4.65mm
Technical
S/N Ratio 60dB
Port Location Top
Sensitivity -44dB ±3dB @ 94dB SPL
Frequency Range 20Hz~20kHz
Voltage Range 3V~10V
Direction Omnidirectional
Current - Supply 500μA
Impedance 2.2kOhms
Output Type Analog
Voltage - Rated 3V
Type Electret Condenser
Termination PC Pins
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.382Dia 9.70mm
Series CMC
Published 2017
Packaging Bulk
Physical
Shape Circular
Supply Chain
Factory Lead Time 14 Weeks
