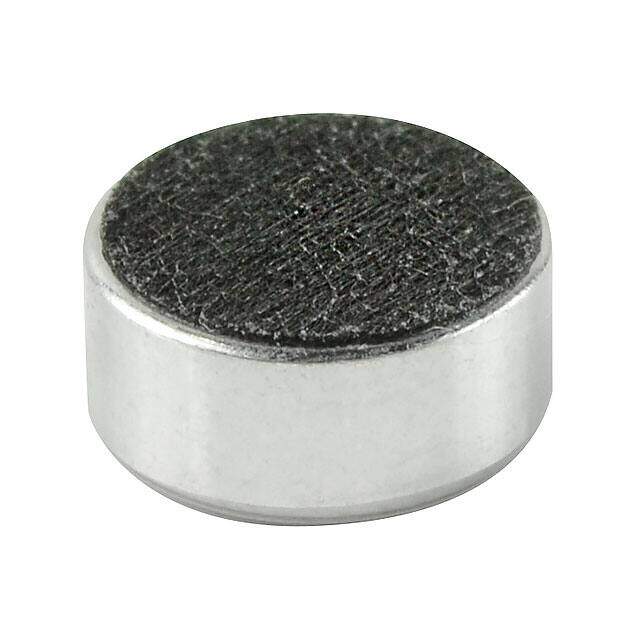

CMC-9745-37T2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Microphones
Description
MIC COND ANLG UNI -37DB 9.7MM D
PDF
/
Buying Options
Total Price: USD $2.06
Unit Price: USD $2.0592
≥1 USD $2.0592
≥10 USD $1.70368
≥100 USD $1.617088
Inventory: 774
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height (Max) 0.185 4.70mm
Technical
S/N Ratio 69dB
Port Location Top
Sensitivity -37dB ±3dB @ 94dB SPL
Frequency Range 100Hz~12kHz
Voltage Range 1.5V~9V
Direction Unidirectional
Current - Supply 400μA
Impedance 2kOhm
Output Type Analog
Voltage - Rated 1.5V
Type Electret Condenser
Termination Solder Pads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.382Dia 9.70mm
Series CMC
Published 2017
Packaging Bulk
Physical
Shape Circular
Supply Chain
Factory Lead Time 14 Weeks
