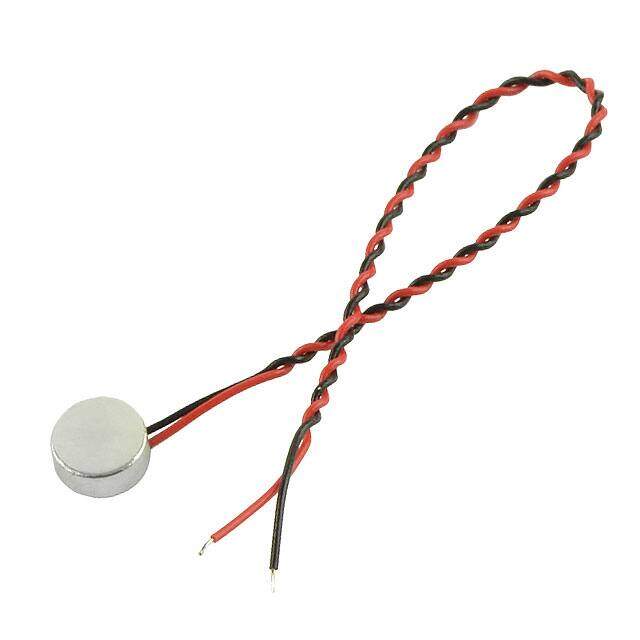

CMC-6027-42L100
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Microphones
Description
MIC COND ANALOG OMNI -42DB 6MM D
PDF
/
Buying Options
Total Price: USD $2.09
Unit Price: USD $2.0856
≥1 USD $2.0856
≥10 USD $1.73272
≥100 USD $1.600192
≥500 USD $1.504096
≥1000 USD $1.41152
≥3000 USD $1.314544
Inventory: 1089
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP57 - Dust Protected, Waterproof
RoHS Status RoHS Compliant
Dimensions
Height (Max) 0.161 4.10mm
Technical
S/N Ratio 57dB
Port Location Top
Sensitivity -42dB ±3dB @ 94dB SPL
Frequency Range 100Hz~20kHz
Voltage Range 2V~10V
Direction Omnidirectional
Current - Supply 500μA
Impedance 2.2kOhms
Output Type Analog
Voltage - Rated 2V
Type Electret Condenser
Termination Wire Leads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.236Dia 6.00mm
Series CMC
Published 2017
Packaging Bulk
Physical
Shape Circular
Supply Chain
Factory Lead Time 14 Weeks
