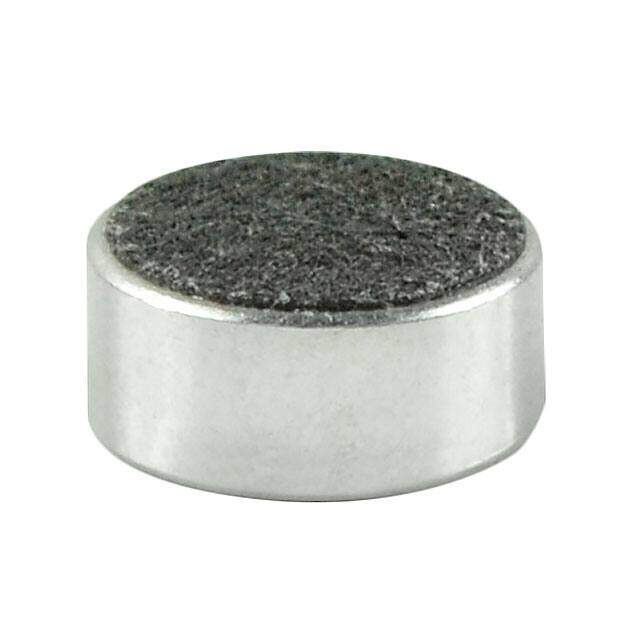

CMC-6027-32T
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Microphones
Description
MIC COND ANALOG OMNI -32DB 6MM D
PDF
/
Buying Options
Total Price: USD $0.8
Unit Price: USD $0.8008
≥1 USD $0.8008
≥10 USD $0.6644
≥100 USD $0.614944
≥500 USD $0.5808
Inventory: 1267
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Shape Circular
Technical
Packaging Bulk
Published 2017
Series CMC
Size / Dimension 0.236Dia 6.00mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Pads
Type Electret Condenser
Voltage - Rated 2V
Output Type Analog
Impedance 2kOhms
Current - Supply 500μA
Direction Omnidirectional
Voltage Range 2V~10V
Frequency Range 50Hz~10kHz
Sensitivity -32dB ±3dB @ 94dB SPL
Port Location Top
S/N Ratio 70dB
Dimensions
Height (Max) 0.138 3.50mm
Compliance
RoHS Status RoHS Compliant
