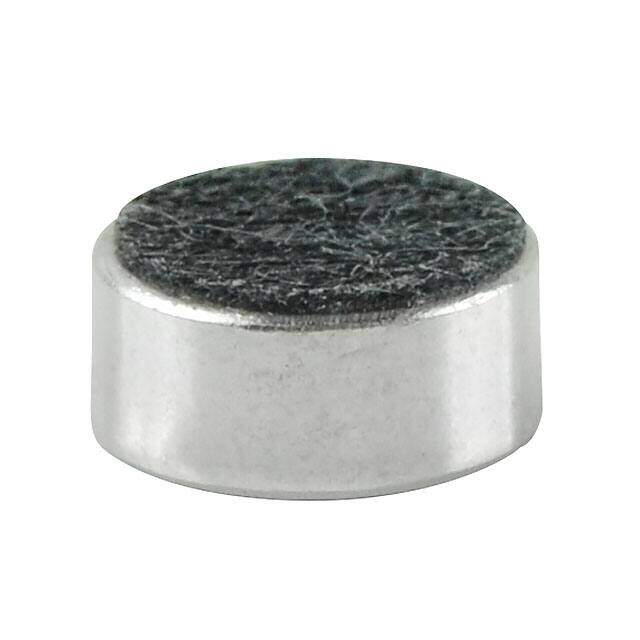

CMC-6027-24T
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Microphones
Description
MIC COND ANALOG OMNI -24DB 6MM D
PDF
/
Buying Options
Total Price: USD $1.8
Unit Price: USD $1.7952
≥1 USD $1.7952
≥10 USD $1.49336
≥100 USD $1.37984
≥500 USD $1.297648
≥1000 USD $1.21836
≥3000 USD $1.128864
Inventory: 1101
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Shape Circular
Technical
Packaging Bulk
Published 2017
Series CMC
Size / Dimension 0.236Dia 6.00mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Pads
Type Electret Condenser
Voltage - Rated 2V
Output Type Analog
Impedance 2.2kOhms
Current - Supply 500μA
Direction Omnidirectional
Voltage Range 2V~10V
Frequency Range 100Hz~20kHz
Sensitivity -24dB ±3dB @ 94dB SPL
Port Location Top
S/N Ratio 70dB
Dimensions
Height (Max) 0.114 2.90mm
Compliance
RoHS Status RoHS Compliant
