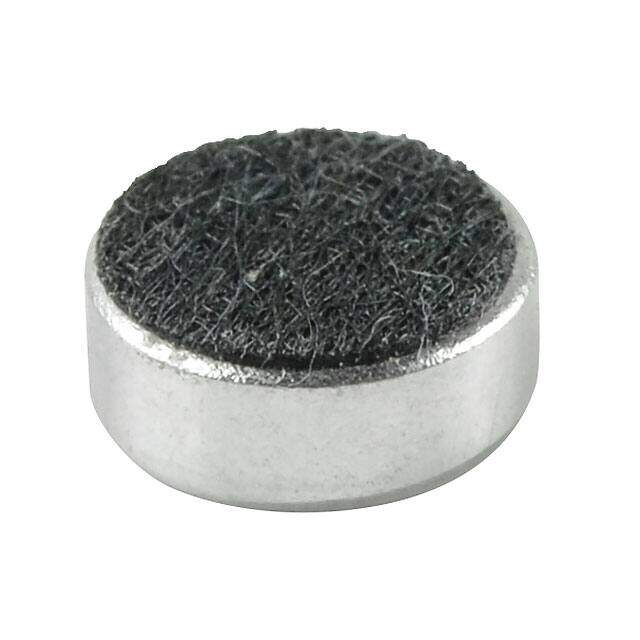

CMC-6022-38T
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Microphones
Description
MIC COND ANALOG OMNI -38DB 6MM D
PDF
/
Buying Options
Total Price: USD $0.81
Unit Price: USD $0.811372
≥1 USD $0.811372
≥200 USD $0.313783
≥500 USD $0.30328
≥1000 USD $0.298028
Inventory: 9013
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Shape Circular
Technical
Packaging Bulk
Published 2017
Series CMC
Size / Dimension 0.236Dia 6.00mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Pads
Type Electret Condenser
Voltage - Rated 2V
Output Type Analog
Impedance 2.2kOhms
Current - Supply 500μA
Direction Omnidirectional
S/N Ratio 60dB
Port Location Top
Sensitivity -38dB ±3dB @ 94dB SPL
Frequency Range 100Hz~20kHz
Voltage Range 2V~10V
Compliance
RoHS Status RoHS Compliant
Dimensions
Height (Max) 0.094 2.40mm
