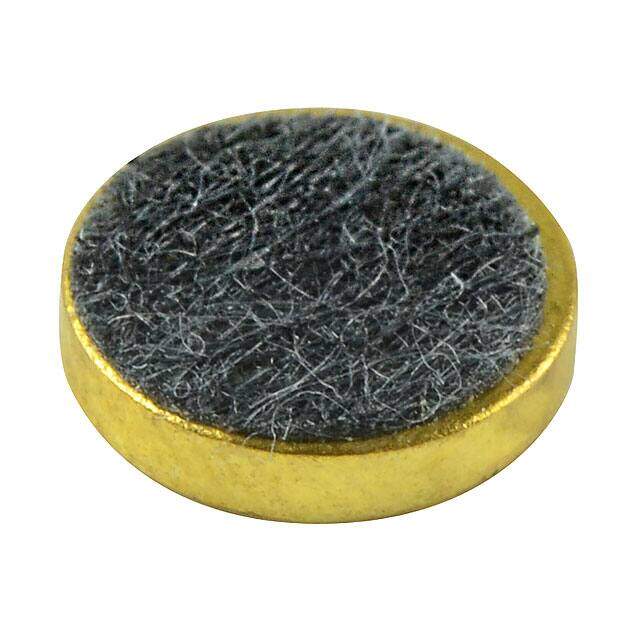

CMC-6013-38T
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Microphones
Description
MIC COND ANALOG OMNI -38DB 6MM D
PDF
/
Buying Options
Total Price: USD $1.1
Unit Price: USD $1.10113
≥1 USD $1.10113
≥10 USD $1.0388
≥100 USD $0.98
≥500 USD $0.92453
≥1000 USD $0.8722
≥3000 USD $0.82283
Inventory: 8214
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height (Max) 0.059 1.50mm
Technical
S/N Ratio 60dB
Port Location Top
Sensitivity -38dB ±3dB @ 94dB SPL
Frequency Range 100Hz~20kHz
Voltage Range 2V~10V
Direction Omnidirectional
Current - Supply 150μA
Impedance 2.2kOhm
Output Type Analog
Voltage - Rated 2V
Type Electret Condenser
Termination Solder Pads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.236Dia 6.00mm
Series CMC
Published 2017
Packaging Bulk
Physical
Shape Circular
Supply Chain
Factory Lead Time 14 Weeks
