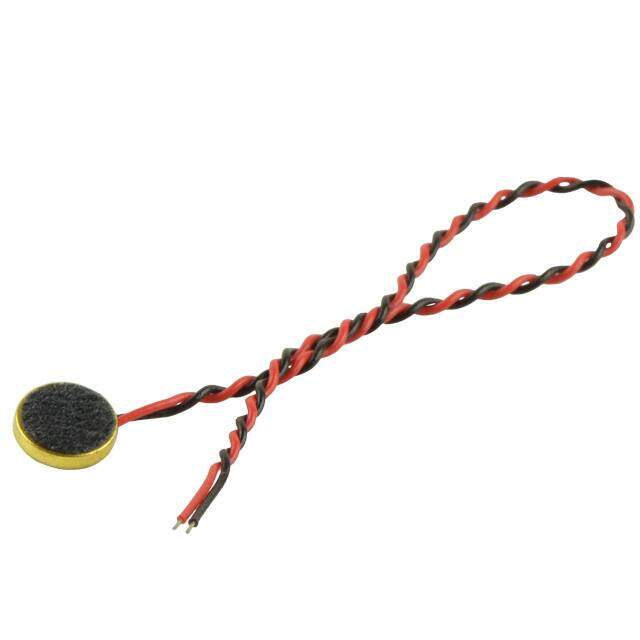

CMC-6013-38L100
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Microphones
Description
MICROPHONE COND ANALOG OMNI
PDF
/
Buying Options
Total Price: USD $1.3
Unit Price: USD $1.3024
≥1 USD $1.3024
≥10 USD $1.078
≥100 USD $0.995808
≥500 USD $0.993344
Inventory: 946
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height (Max) 0.059 1.50mm
Technical
S/N Ratio 60dB
Port Location Top
Sensitivity -38dB ±3dB @ 94dB SPL
Frequency Range 100Hz~20kHz
Voltage Range 2V~10V
Direction Omnidirectional
Current - Supply 150μA
Impedance 2.2kOhm
Output Type Analog
Voltage - Rated 2V
Type Electret Condenser
Termination Wire Leads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.236 5.90mm Height
Series CMC
Packaging Bulk
Physical
Shape Circular
Supply Chain
Factory Lead Time 14 Weeks
